Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE
by
CRANKCASE
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
32
32
32
32
33
34
34
35
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
32
32
32
32
33
34
34
35
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
7
TUBING-CONVOLUTED 10CM
552151610
Not Available
8
ENGINE-EC50PL235 SB
3086509
9990000
Not Available
9
RECOIL HANDLE; GLOSS BLACK
5431499070
Not Available
10
SCREW
7512530
$10,49 Unit Price incl. VAT
11
ENGINE MOUNT; TOP; RUBBER
5411685
9999999
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
ENGINE MOUNT; BOTTOM; RUBBER
5411686
9999999
Not Available
14
MOTOR MOUNT PLATE
5242496
9999999
Not Available
15
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
16
BOLT
7512539
$7,34 Unit Price incl. VAT
17
ENGINE MOUNT
3110061
9999999
Not Available
18
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
19
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
20
LIMITER TORQUE BLK.
1012048067
Not Available
21
RIVET
7661637
$2,09 Unit Price incl. VAT
22
NUT HEX
7542414
$9,44 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
STOP TORQUE COARSE 1.94 DIA
3110063
9999999
Not Available
25
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
26
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
27
CONDUIT CONVOL(15 CM)
401005115
Not Available
28
LINE; FUEL;600CM;SVC
8350018600
Not Available
29
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
30
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
31
THROTTLE CABLE WITH OIL
7080554
$120,74 Unit Price incl. VAT
32
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
33
FUEL VALVE; PLASTIC; INCLINE 1/4 IN
7052248
$52,49 Unit Price incl. VAT
34
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
35
FUEL LINE; 600 CM
8450040600
Not Available

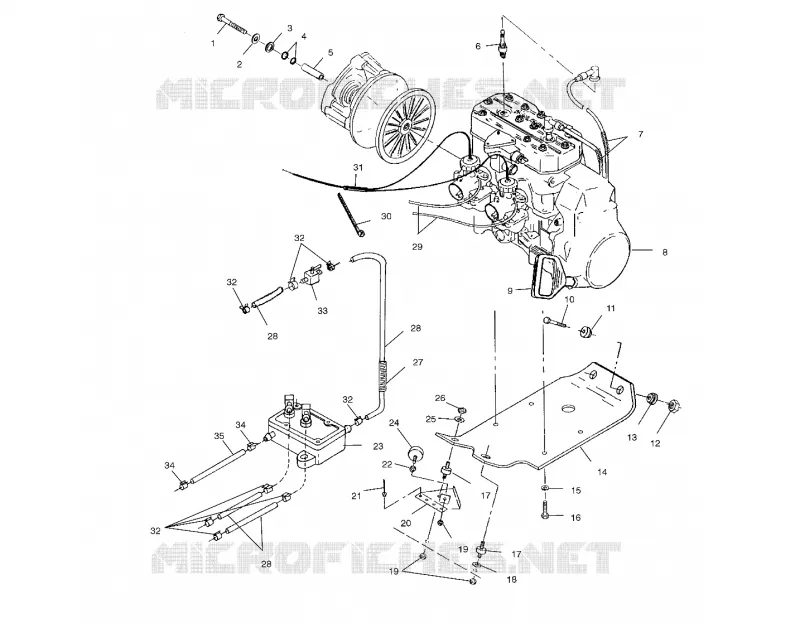

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
