1
Engine displacement
autre
2
Year
1991
3
Trim
SWE STARLITE - S913027
4
Parts Catalog
DRIVE TRAIN INDY LITE AND STAR LITE (4919311931014A)
5
Parts Diagram
Parts Catalog
BRAKE INDY LITE AND STAR LITE (4919311931013A)
by
ENGINE MOUNTING STAR LITE (4919311931015A)
DRIVE TRAIN INDY LITE AND STAR LITE (4919311931014A)
1
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
2
FLANGETTE
5221172
9999999
Not Available
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
BEARING
3514501
9999999
Not Available
6
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
7
SHAFT
5020547
Not Available
8
SPROCKET (Star)
5430708
Not Available
8
SPROCKET-6T (6 Tooth)
5430583
Not Available
9
KEY-SQUARE
7721204
9999999
Not Available
10
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
11
BELT DRIVE-LITE
3211051
9999999
Not Available
11
BELT DRIVE
3211055
9999999
Not Available
12
SPACER
5020566
9999999
Not Available
13
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
14
WASHER;SHAKEPROOF;5/16(10)
7577901
9999999
Not Available
15
BOLT [No Longer Available]
7572357
Not Available
16
BUSHING MACHINERY
7555790
9999999
Not Available
17
CLIP METAL(YOKOHAMA)
5222109
9999999
Not Available
18
TRACK;(STARLITE)
5410580
5410614
Not Available
18
TRACK
5410579
5410614
Not Available
19
BUSHING(10)
7555819
9999999
Not Available

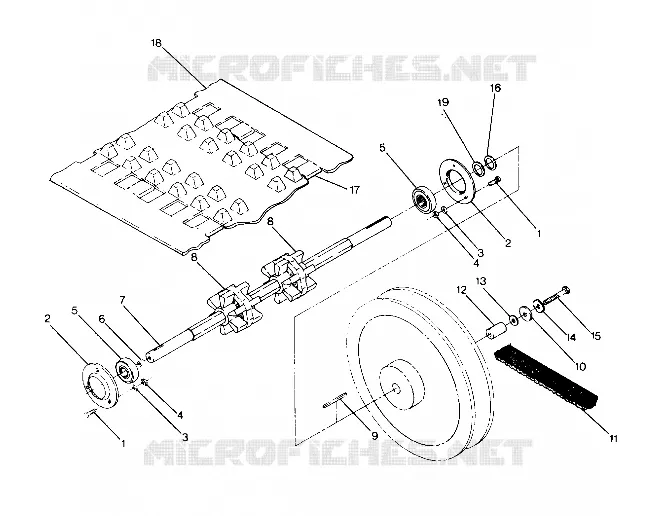

Find the detailed DRIVE TRAIN INDY LITE AND STAR LITE (4919311931014A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
