1
Engine displacement
autre
2
Year
1991
3
Trim
SWE STARLITE - S913027
4
Parts Catalog
CHASSIS AND SEAT INDY LITE AND STAR LITE (4919311931001A)
5
Parts Diagram
Parts Catalog
FUEL PUMP INDY LITE (4918591859036A)
by
HOOD INDY LITE AND STAR LITE (4919311931003A)

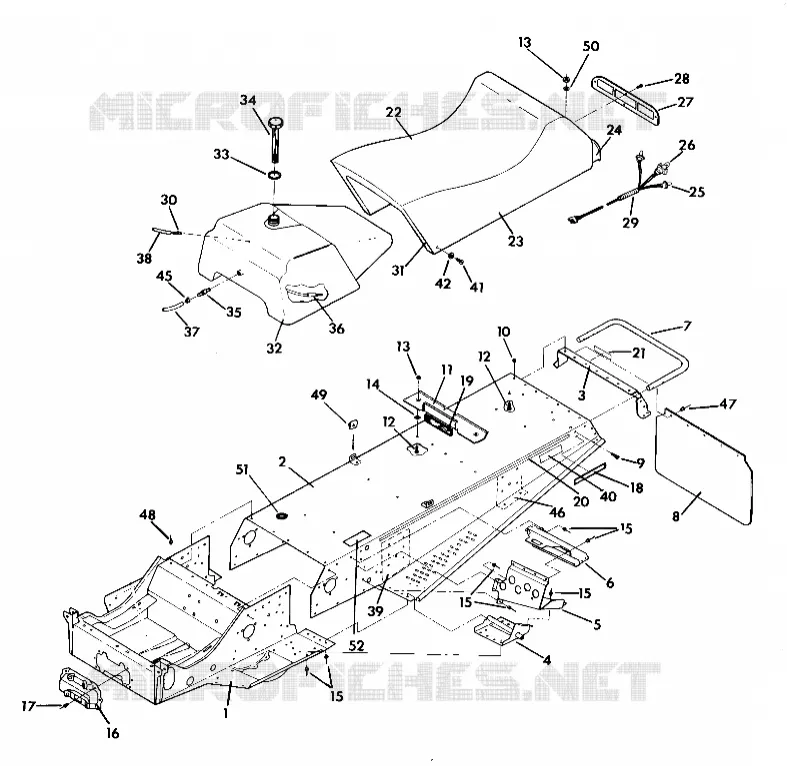

CHASSIS AND SEAT INDY LITE AND STAR LITE (4919311931001A)
1
BULKHEAD #LITE INDY#
1011784067
Not Available
2
TUNNEL ASM.
1011788
Not Available
3
PANEL REAR CLOSE-OFF
5222313
Not Available
4
SUPPORTLH TRLG.ARM
1011792
9999999
Not Available
4
SUPPORT RH TRLG.ARM
1011793
9999999
Not Available
5
FOOTREST;RH LOWER
5220643
9999999
Not Available
5
FOOTREST;LH LOWER
5220642
5220642-067
Not Available
6
FOOTREST;RH UPPER
5222309
9999999
Not Available
6
FOOTREST;LH UPPER
5222308
9999999
Not Available
7
BUMPER REAR Substituted by 5224429-067
5224429
Not Available
8
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
9
SCREW
7512252
9999999
Not Available
10
RIVET
7661828
9999999
Not Available
11
STRAP GAS TANK
5221722
9999999
Not Available
12
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
13
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
14
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
15
RIVET
7661818
9999999
Not Available
16
MOUNT;RADIUS ROD
5130759
9999999
Not Available
17
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
18
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
19
CUSHION TANK H.D.
5420126
9999999
Not Available
20
STRIPE;TUNNEL(LITE)
7072923
9999999
Not Available
20
STRIPE;TUNNEL(STARLITE)
7072916
9999999
Not Available
21
DECAL TRACK SEAT(BLK.) [No Longer Available]
7073038
Not Available
22
SEAT ASM (LITE) Substituted by 2681472 (Lite)
2681476
Not Available
23
COVER SEAT (LITE) Substituted by 2681473 (Lite)
2681477
Not Available
24
HOUSING TAILLIGHT
5430425
Not Available
25
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
26
BULB BRAKELIGHT
4030019
9999999
Not Available
27
LENS TAILLIGHT
5430423
9999999
Not Available
28
SCREW
7511840
9999999
Not Available
29
HARNESS-TAILLIGHT
2460226
9999999
Not Available
30
VENT FITTING;TANK
5430669
9999999
Not Available
31
BUN SEAT(INDY LITE) [No Longer Available]
5431213
Not Available
32
TANK; FUEL
5431210
9999999
Not Available
33
GASKET-GAS CAP
5810142
5810513
$15,74 Unit Price incl. VAT
34
CAP GAS Substituted by 2511190
2511193
Not Available
35
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
36
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
37
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
38
VENT LINE;1/8;BULK
8360009
8360009-600
$83,99 Unit Price incl. VAT
39
BRKT.
5220542
5220542-067
Not Available
40
DECAL #340 LITE# [No Longer Available] (Indy Lite)
7072942
Not Available
41
SCREW
7512297
$10,49 Unit Price incl. VAT
42
WASHER
7555798
$1,56 Unit Price incl. VAT
45
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
46
BRKTLH-R.SUSP.
1011779
9999999
Not Available
46
BRKTRH-R.SUSP.
1011780
9999999
Not Available
47
RIVET
7621418
$2,09 Unit Price incl. VAT
48
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
49
NUT RETAINER
7670059
9999999
Not Available
50
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
51
GROMMET RUBBER
5410021
9999999
Not Available
52
PAD AIR BOX
5810502
9999999
Not Available

Find the detailed CHASSIS AND SEAT INDY LITE AND STAR LITE (4919311931001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
