COOLING SYSTEM for POLARIS 750 FST IQ TOURING from 2010

COOLING SYSTEM

1

BOTTLE-COOLANT FS/FST

5436215

9999999

Not Available

2

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

3

GASKET

5810279

$4,19 Unit Price incl. VAT

4

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

5

SCREW

7512095

$9,44 Unit Price incl. VAT

6

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

6

FUEL LINE; 1/4 ID

84500031525

Not Available

7

REMOTE COOLANT FILTER

5433364

$73,49 Unit Price incl. VAT

8

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

9

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

10

HOSE-TUBE/FILLER

5413568

9999999

Not Available

11

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

12

HOSE-RUNNING BRD/COOLANT TUBE

5412781

9999999

Not Available

13

TUBE-GRIPPER/FILLER

5335651

9999999

Not Available

14

WELD-RUNNING BOARD COOLER;RH

1240353

9999999

Not Available

14

WELD-RUNNING BOARD COOLER;LH

1240352

9999999

Not Available

15

CLAMP SPRINGBAND 29/12 BLK

7080842

$13,64 Unit Price incl. VAT

16

HOSE-RUNNING BRD/RR COOLER;LH

5412779

9999999

Not Available

16

HOSE-RUNNING BRD/RR COOLER;RH

5412780

9999999

Not Available

17

WELD-REAR COOLER

1240188

9999999

Not Available

18

RIVET

7661637

$2,09 Unit Price incl. VAT

19

FLEX CONDUIT; 1.250 I.D X 15 CM

552128715

Not Available

20

HOSE-CTR COOLER/RUNNING BRD;LH

5412785

9999999

Not Available

21

BULKHEAD COOLER WELD

2520575

9999999

Not Available

22

HOSE-ENGINE OUT/OIL COOLER

5413539

9999999

Not Available

23

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

24

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

25

RESTRICTOR-COOLANT LONG FS/T

5136216

9999999

Not Available

26

MOUNT-RADIATOR FOAM

5812496

9999999

Not Available

27

MOUNT-RADIATOR RUBBER

5412513

9999999

Not Available

28

RADIATOR ASM.

1240149

1244618

Not Available

29

OIL HOSE COOLER/RADIATOR

5413540

9999999

Not Available

30

SEAL-FRONT CLOSEOFF COOLER

5812845

9999999

Not Available

31

HOSE-RESERVOIR/RADIATOR

5413535

9999999

Not Available

32

CLAMP-DOUBLE HOSE 1 IN (10)

7080898

9999999

Not Available

33

WASHER

7556044

$7,34 Unit Price incl. VAT

34

RIVET

7621467

$2,09 Unit Price incl. VAT

35

ENGINE OUTLET AND CENTER COOLER HOSE

5412984

9999999

Not Available

36

HOSE-RESERVOIR/ENGINE IN

5413567

9999999

Not Available

37

COOLANT RESEVOIR

5437634

9999999

Not Available

37

FOIL-COOLANT RESERVOIR

5813414

9999999

Not Available

38

HOSE-FILLER/RESERVOIR

5413534

9999999

Not Available

39

HOSE CLAMP

7080807

$17,84 Unit Price incl. VAT

39

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

40

FUEL LINE; 600 CM

8450040600

Not Available

41

HOSE-HEAD BLEEDPTO

5413817

9999999

Not Available

42

HOSE-HEAD BLEEDMAG

5413816

9999999

Not Available

43

FITTING-TEE 1/4-1/4-BRB-BRASS

7052468

9999999

Not Available

44

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

45

CLAMP-DBL TUBE;.562 VNLCOATED

7081364

9999999

Not Available

46

SCR-M6X1.0X16.0-HX/FL-P80-Y

7517915

9999999

Not Available

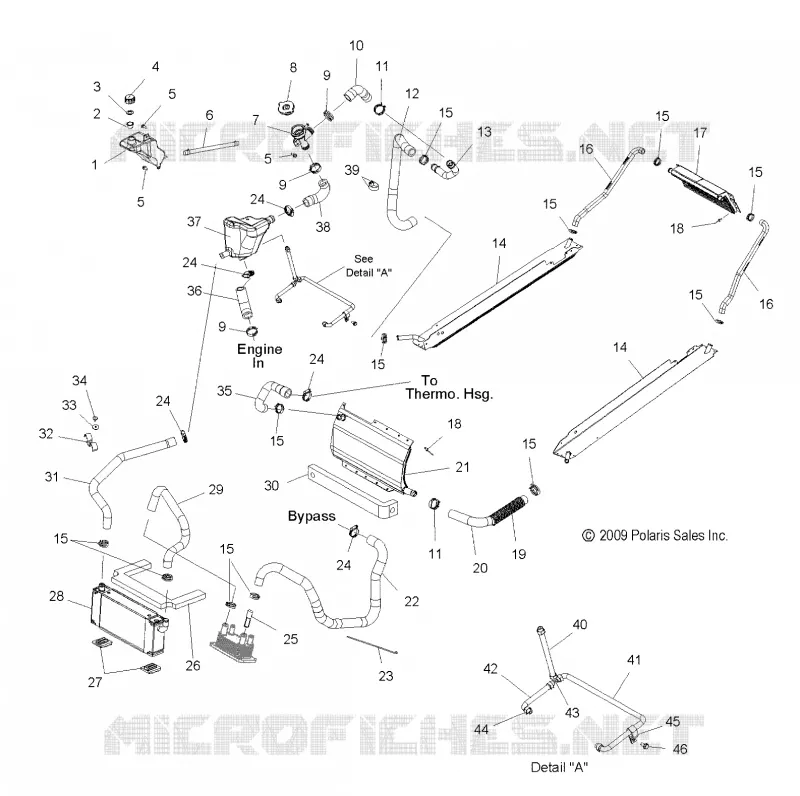

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
