DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT for POLARIS 750 FST IQ TOURING from 2010

DRIVE TRAIN, GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT

1

SCR-5/16-18-1 UNC 2A TRX-P30-Y

7518444

$7,34 Unit Price incl. VAT

2

FLANGETTE

5222751

9999999

Not Available

3

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

4

MNT-JACKSHAFT BRGLHMACH

5134106

9999999

Not Available

5

RIVET

7661637

$2,09 Unit Price incl. VAT

6

ASM-JACKSHAFT W/BRG

1332453

9999999

Not Available

7

ASM-DRVSHAFT TUBULAR 9T REINF

1590412

9999999

Not Available

8

FLANGETTE ASSEMBLY WITH SCREWS

1014299

$68,24 Unit Price incl. VAT

9

BEARING-25MM SPH OD LUBE

3514448

3514617

$54,59 Unit Price incl. VAT

10

WHEEL-PICKUP SPEEDO 9 TOOTH

5240013

5136619

$62,99 Unit Price incl. VAT

11

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

12

SCREW

7516733

$11,54 Unit Price incl. VAT

13

BOLT-CARR 5/16-18X5/8 GR5-Y

7518049

$7,34 Unit Price incl. VAT

14

PALNUT

7547030

$9,44 Unit Price incl. VAT

15

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

16

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

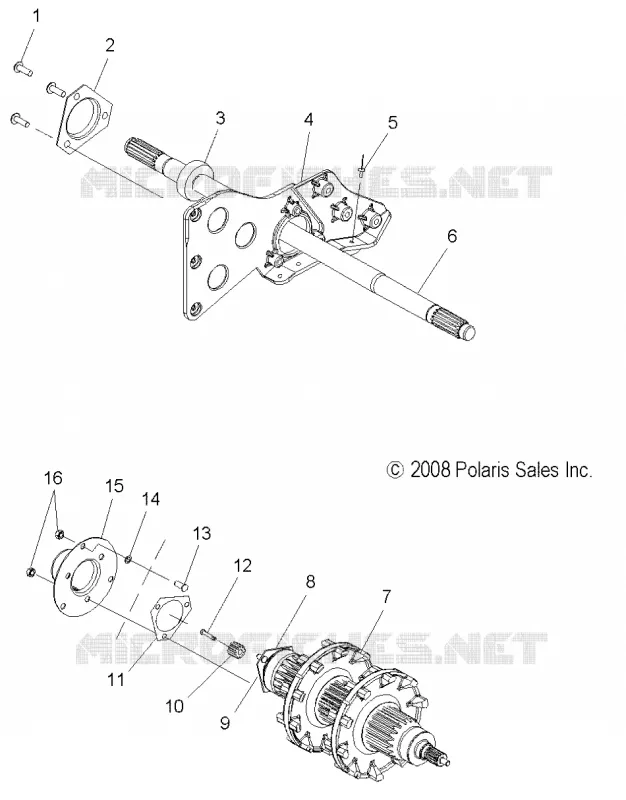

Find the detailed DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
