1
Engine displacement
autre
2
Year
1998
3
Trim
LITE DELUXE - 0983431
4
Parts Catalog
DRIVE TRAIN
5
Parts Diagram
Parts Catalog
CHAINCASE
by
DRIVE CLUTCH
DRIVE TRAIN
1
BOLT
7515369
$9,44 Unit Price incl. VAT
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER DRIVEN CLUTCH
5020645
5135611
$15,74 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BUSHING
7556509
$3,14 Unit Price incl. VAT
7
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
8
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
9
GASKET JACKSHAFT 2-BOLT
5830135
$5,24 Unit Price incl. VAT
10
JACKSHAFT BEARING
3514519
9999999
Not Available
11
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
DRIVE BELT
3211058
9999999
Not Available
15
JACKSHAFT ASM. (Incl. 17) (Deluxe)
1332146067
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
9999999
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
21
O-RING
5410675
$3,14 Unit Price incl. VAT
22
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
23
BOLT CARRIAGE
7515428
9999999
Not Available
24
DRIVESHAFT ASMW/M15 BRG2 DR
1590267
9999999
Not Available
25
FLANGETTE ASM;;W/ SCREWS
1012434
9999999
Not Available
26
BEARING LUBE.
3514526
3514525
$54,59 Unit Price incl. VAT
27
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
28
FLANGETTE
5241178
9999999
Not Available
29
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
30
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
31
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

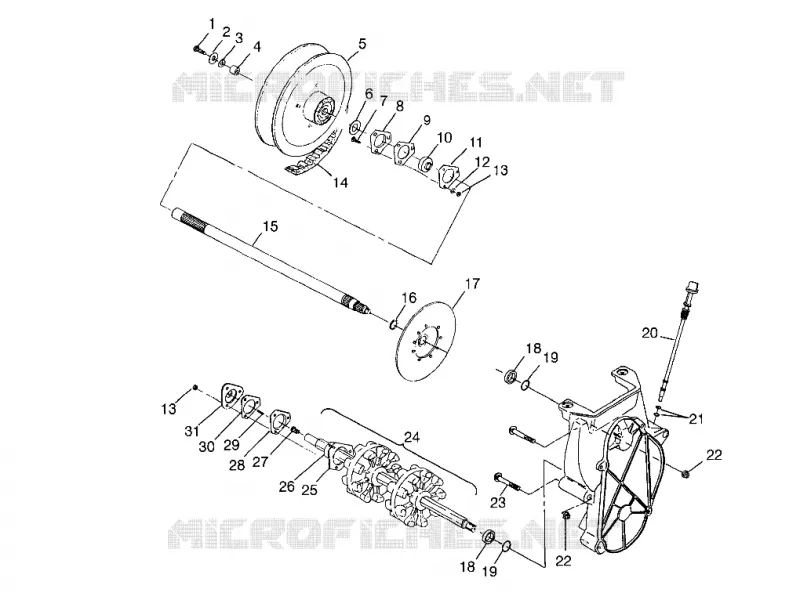

Find the detailed DRIVE TRAIN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
