1
Engine displacement
autre
2
Year
1998
3
Trim
LITE DELUXE - 0983431
4
Parts Catalog
TUNNEL AND SEAT
5
Parts Diagram
Parts Catalog
STARTING MOTOR LITE O983433 AND LITE DELUXE O983431 (4941864186C011)
by
NOSEPAN CONSOLE
TUNNEL AND SEAT
1
SPRING PROTECT.VENTHOSE
7041605
Not Available
1
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
2
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
3
GAS CAP WITH GAUGE
2511245
9999999
Not Available
4
SEAT ASM.
2682257
9999999
Not Available
4
COVER SEAT LITE DLX (Deluxe)
2682149
Not Available
4
SEAT ASMLITE DLX
2682146
9999999
Not Available
4
COVER ASM SEAT (Lite)
2682256
Not Available
5
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
SCREW
7511840
9999999
Not Available
8
LENS TAILLIGHT
5430423
9999999
Not Available
9
HOUSING TAILLIGHT
5431545
9999999
Not Available
10
BULB
4030045
9999999
Not Available
11
TAILLIGHT BULB
4030024
9999999
Not Available
12
TAILLIGHT HARNESS
2460399
9999999
Not Available
13
SCREW
7515111
9999999
Not Available
14
WASHER
7555798
$1,56 Unit Price incl. VAT
15
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
16
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
17
TANK;FUEL;(LITE GT)
2511214
9999999
Not Available
18
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
19
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
20
FUEL LINE; 1/4 ID
84500031525
Not Available
21
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
22
BRKT STAND BLK.
5220520067
Not Available
23
RIVET(50)
7621453
9999999
Not Available
24
RIVET
7661637
$2,09 Unit Price incl. VAT
25
GROMMET RUBBER
5410021
9999999
Not Available
26
TUNNEL LITE
1012504
9999999
Not Available
27
BRKT CONSOLE/SEAT MT.
5222452067
Not Available
28
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
29
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
30
STRAP GASTANK BLK.
5222330067
Not Available
31
CUSHION TANK H.D.
5420126
9999999
Not Available
32
RIVET (10)
7661836
9999999
Not Available
33
BUMPER REAR XL BLK
5224766067
Not Available
34
RIVET
7621418
$2,09 Unit Price incl. VAT
35
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
36
SCREW
7512252
9999999
Not Available
37
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
38
RIVET (50)
7661837
9999999
Not Available
39
PAD LH R.SUSP MT XL
5241670067
Not Available
39
PAD RH R.SUSP.MT XL
5241671067
Not Available
40
FOOTREST ASMLH
1011830
9999999
Not Available
40
FOOTREST ASMRH(STARLITE)
1011826
9999999
Not Available
41
SUPPORT;LH TRLG.ARM;BLK.
1011792067
Not Available
41
SUPPORT RH TRLG.ARM BLK.
1011793067
Not Available
42
PAD FR.SUSP.MT (XL)
5211705067
Not Available
43
PAD AIR BOX
5810502
9999999
Not Available
44
BUSHING;SNAP(10)
7080404
9999999
Not Available
45
BULKHEAD BLK
1012587067
Not Available
46
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
47
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
48
MOUNT;RADIUS ROD
5130759
9999999
Not Available

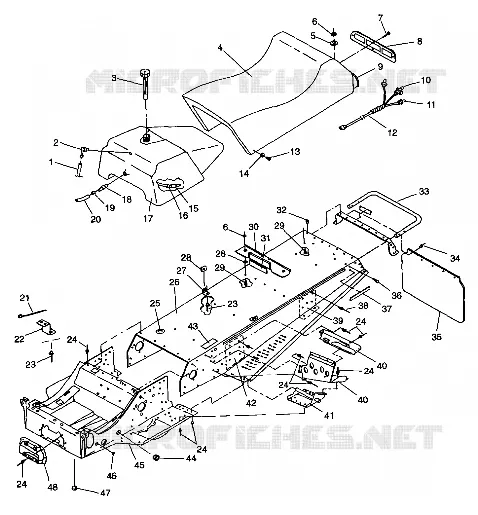

Find the detailed TUNNEL AND SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
