Parts Catalog
COOLING
5
Parts Diagram
Parts Catalog
SWAY BAR
by
STEERING
COOLING
8
8
8
9
10
11
12
13
13
14
15
15
16
17
18
19
20
21
22
23
24
24
24
24
25
25
25
26
26
26
27
27
27
27
28
29
30
31
32
33
1
MOUNT-RADIATOR RUBBER
5412513
9999999
Not Available
2
RADIATOR ASM.
1240149
1244618
Not Available
3
MOUNT-RADIATOR FOAM
5812496
9999999
Not Available
4
HOSE-T/RADIATOR INLET
5412567
9999999
Not Available
5
CLAMP SPRINGBAND 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
6
HOSE-RADIATOR/BOTTLE
5412569
9999999
Not Available
7
FITTING-TEE
5435491
9999999
Not Available
8
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
9
HOSE-COOLANT BOTTLE/ENGINE
5412472
9999999
Not Available
10
HOSE-ENG OUT/TEE
5412566
9999999
Not Available
11
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
12
FUEL LINE; 5 FT.
8450044153
Not Available
13
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
13
TUBING-CONVOLUTED 1.25 X3
5521510
9999999
Not Available
14
CABLE TIE;14";WHITE
7081240
7080761
$5,24 Unit Price incl. VAT
15
CAP-PRESSURE
1240169
1240300
$73,49 Unit Price incl. VAT
15
DECAL-WATER BOTTLE CAP
7170063
9999999
Not Available
16
FUEL LINE; 1/4 ID
84500031525
Not Available
17
COOLANT BOTTLE
2520452
9999999
Not Available
18
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
19
TUBE-COOLANT FRTRH
5334634
9999999
Not Available
20
HOSE-BOTTLE/TUBE
5412719
9999999
Not Available
21
CLAMP-.751D RUBBER COATED HD
7081235
$6,29 Unit Price incl. VAT
22
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
23
HOSE-GRIPPER FRT RH
5412720
9999999
Not Available
24
EXCHANGER-GRIPPER/COOLER RH
5134669
9999999
Not Available
24
EXCHANGER-GRIPPER/COOLER LH
5134668
9999999
Not Available
25
RIVET
7661637
$2,09 Unit Price incl. VAT
26
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
27
HOSE-GRIP COOLER/REARCOOLERRH
5412482
9999999
Not Available
27
HOSE-GRIP COOLER/REARCOOLERLH
5412481
9999999
Not Available
28
COOLER ASSEMBLY REAR LONG
1240173
9999999
Not Available
29
HOSE-TUBE/GRIPPER LH
5412681
9999999
Not Available
30
CENTER COOLER
2520445
9999999
Not Available
31
FOAM-SEAL
5812774
9999999
Not Available
32
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
33
HOSE-T/CENTER COOLER
5412568
9999999
Not Available

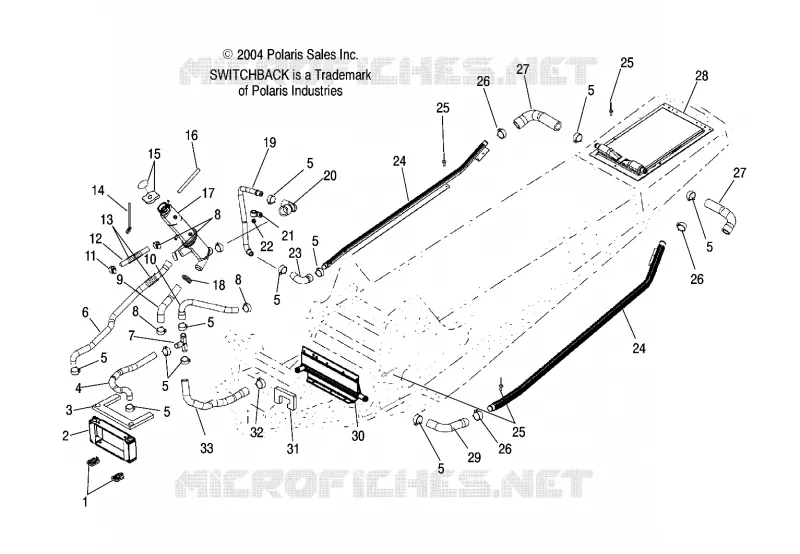

Find the detailed COOLING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
