1
Engine displacement
900
2
Year
2005
3
Trim
900 SWITCHBACK
4
Parts Catalog
WATER OIL PUMP
5
Parts Diagram
Parts Catalog
EXHAUST VALVE
by
MAGNETO
WATER OIL PUMP
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
1
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
2
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
3
WATERPUMP SEAL 15 X 36 UNITIZED
3610107
9999999
Not Available
4
RING-RETAINING
7710527
9999999
Not Available
5
SCREW (10)
7517398
$6,29 Unit Price incl. VAT
6
ASM-OIL PUMP
2520449
9999999
Not Available
7
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
8
SCREW
7517277
$5,76 Unit Price incl. VAT
9
O-RING
5411293
9999999
Not Available
10
PLASTI-LOCK RIVET
7621509
$2,09 Unit Price incl. VAT
11
RETAINER-WIRE
5435631
9999999
Not Available
12
BEARING-BALL 15X32X9
3514474
3515828
$17,63 Unit Price incl. VAT
13
KIT-DRIVE SHAFT W/BEARINGS
2202813
9999999
Not Available
14
BALL BEARING
3514407
9999999
Not Available
15
OIL SEAL
5412217
9999999
Not Available
16
WATERPUMP IMPELLER
5435314
9999999
Not Available
17
WATERPUMP SEAL
5412367
9999999
Not Available
18
WATERPUMP COVER ASSEMBLY
1202459
9999999
Not Available
19
HEX FLANGE SCREW 6 MM X 1.0 MM X 22.8 MM
7518385
$7,34 Unit Price incl. VAT

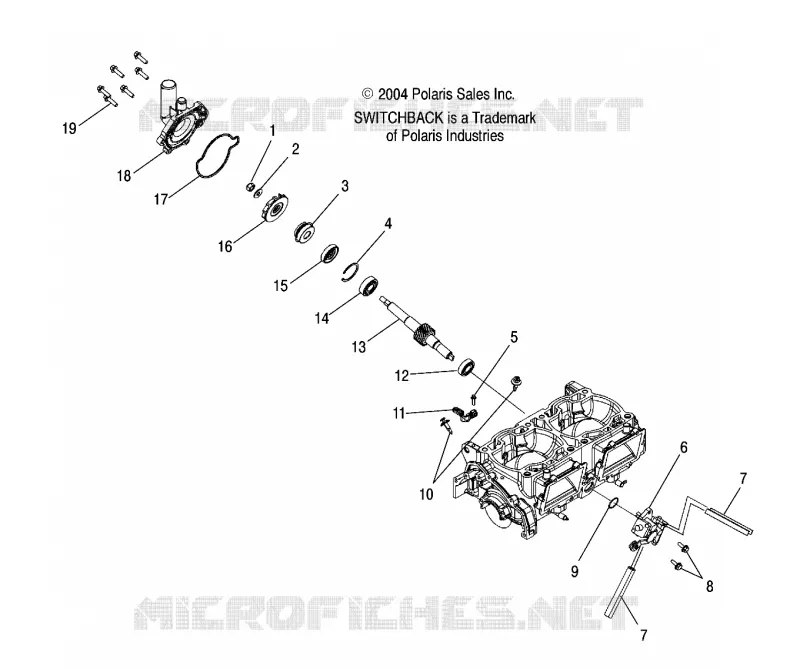

Find the detailed WATER OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
