BRAKES, BRAKE PEDAL AND MASTER CYLINDER for POLARIS SPORTSMAN TOURING EPS 850 - A12DN8EAF/EAH/EAR/EAW from 2012

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

1

2-EAR RESERVOIR BRAKE ASSEMBLY; TALL

1911224

$68,24 Unit Price incl. VAT

2

DIAPHRAGM-RESERVOIR BRAKE

5413262

$9,44 Unit Price incl. VAT

3

RING-RESERVOIR BRAKE

5437041

$10,49 Unit Price incl. VAT

4

HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK

7518533

$2,09 Unit Price incl. VAT

5

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

6

HOSE-RESERVOIR BRAKE 826MM

1911267826

Not Available

7

ASM-MASTER CYLDIRMC 3/4"

1911123

1913033

$257,24 Unit Price incl. VAT

8

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

9

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

10

BRKT-BRAKE MOUNT

5251561

$89,24 Unit Price incl. VAT

11

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

12

HEX FLANGE BOLT; 8 MM X 1.25 MM X 50 MM

7518677

$7,34 Unit Price incl. VAT

13

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

14

PEDAL PIVOT BUSHING

5433189

$7,34 Unit Price incl. VAT

15

TORSION SPRING; BRAKE

7041750

$16,79 Unit Price incl. VAT

16

WELD-LEVER BRAKE BLK

1911207067

Not Available

17

BOLT-M10X1.25X50 HXFLG-OLIVE D

7518559

$10,49 Unit Price incl. VAT

18

SPACER-12.7X10.2X30.5MM

5135720

$12,59 Unit Price incl. VAT

19

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

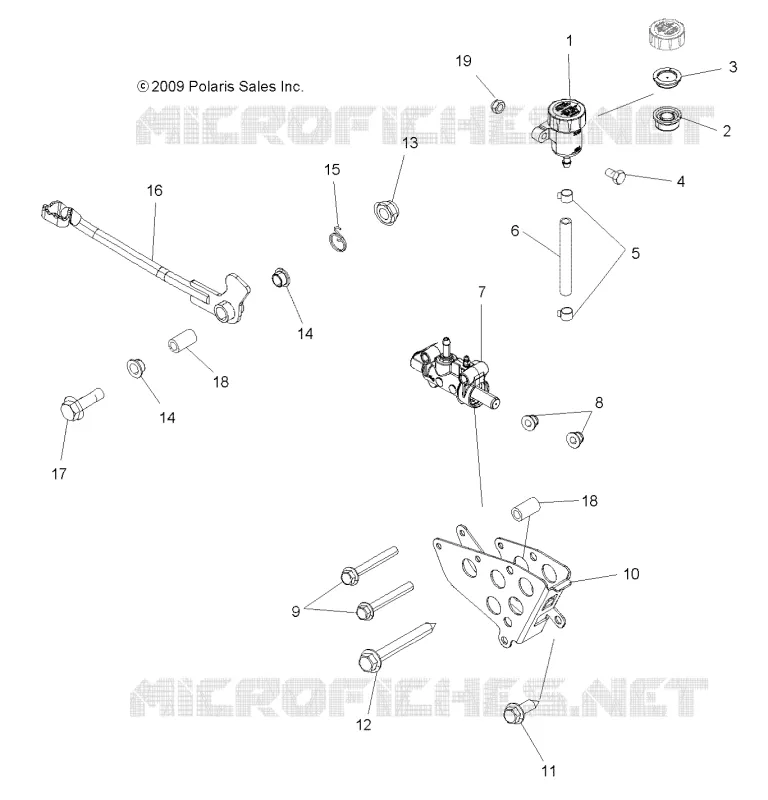

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
