1
Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
PARKING BRAKE BRAKE
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
BOOT-OUTLET CLUTCH
5813831
9999999
Not Available
2
SCREW
7512098
$3,14 Unit Price incl. VAT
3
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
4
SHIELD
TBD
Not Available
5
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
6
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
7
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
8
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
9
CLUTCH COVER ASSEMBLY; INNER
2634188
$257,24 Unit Price incl. VAT
10
AIR INLET CLUTCH DUCT
5438891
$52,49 Unit Price incl. VAT
11
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
12
CLUTCH INTAKE HOSE
5414156
9999999
Not Available
13
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
14
DECAL-BELT CAUTION/CHECK
7177469
Not Available
15
SCREW
7512094
$3,14 Unit Price incl. VAT
16
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
17
CLAMP-RUBBER COATED;.75 ID
7081116
$13,64 Unit Price incl. VAT
18
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT

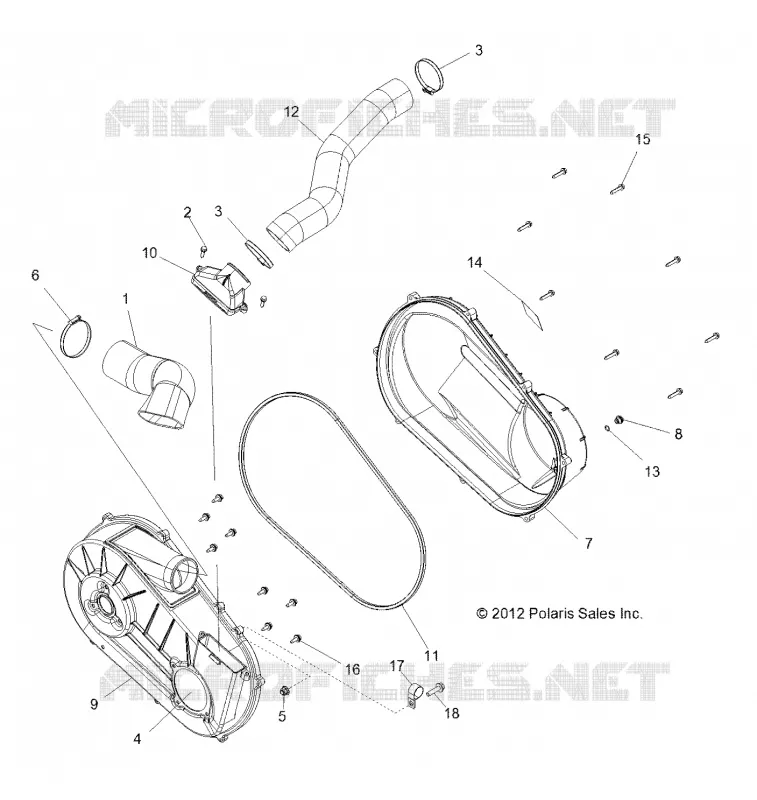

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
