Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI INTL - R13VH57FX
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
COOLING SYSTEM
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
17
18
18
19
19
20
21
22
23
24
25
1
AIRBOX ASSEMBLY; MAIN
1240633
$167,99 Unit Price incl. VAT
2
BOOT-AIRBOX
5414134
9999999
Not Available
3
BASE-AIRBOX
5438897
$136,49 Unit Price incl. VAT
4
CLAMP-AIRBOX
7081312
$20,99 Unit Price incl. VAT
5
AIRBOX CLIP
7081707
$9,44 Unit Price incl. VAT
6
BRKT-MOUNT; AIRBOX;BLK
5254922329
Not Available
7
GROMMET
5412507
$12,59 Unit Price incl. VAT
8
HOSE-ENGINE INLET
5414484
9999999
Not Available
9
AIRBOX LID
5450157
9999999
Not Available
10
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
11
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
12
MAIN AIRBOX FILTER
7081706
$57,63 Unit Price incl. VAT
13
DECAL-FILTER MAINT
7177872
$13,64 Unit Price incl. VAT
14
BOX-INTAKE
5438884
9999999
Not Available
14
INTAKE BOX
5450598
9999999
Not Available
15
ENGINE FILTER
5813713
$68,24 Unit Price incl. VAT
16
CLUTCH FILTER; IN
5813712
$26,24 Unit Price incl. VAT
17
SCREW
7512026
$2,09 Unit Price incl. VAT
18
DRAIN CAP
5412960
$31,49 Unit Price incl. VAT
19
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
20
SCREW
7517685
$3,14 Unit Price incl. VAT
21
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available
22
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
23
HOSE-SEAL ENGINE INLET
5414483
9999999
Not Available
24
INLET ENGINE DUCT
5439759
9999999
Not Available
25
BREATHER HOSE
5414167
$173,24 Unit Price incl. VAT

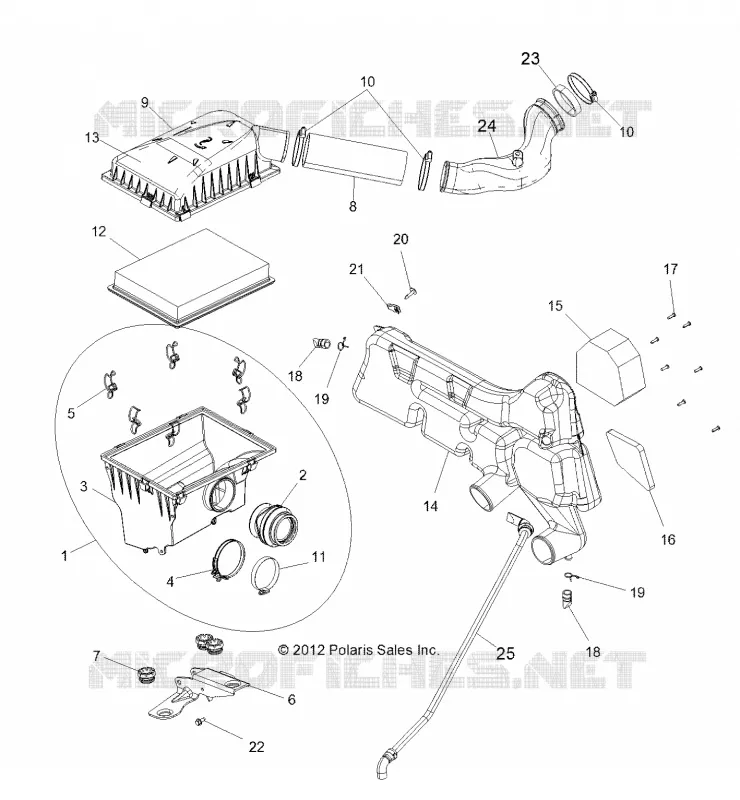

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
