ACCS SYSTEM 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C005)
5
Parts Diagram
Parts Catalog
OIL TANK AIR BOX 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C004)
by
PISTON CRANKSHAFT 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C010)

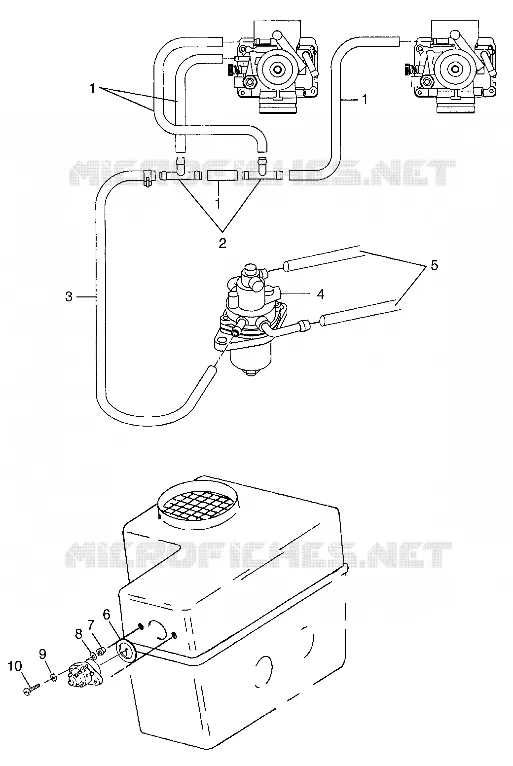

ACCS SYSTEM 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C005)
1
PIPE RUBBER(8MMX1MM)ACCS
3085172
9999999
Not Available
2
T-NIPPLE (AIR VENT)
3085461
9999999
Not Available
3
PIPE RUBBER(10MMX1M.)ACCS
3085173
Not Available
4
BODY ASM (ACCS.)
3085491
Not Available
5
FUEL LINE; 600 CM
8450040600
Not Available
6
GROMMET ACCS.
5410982
9999999
Not Available
7
WELL NUT
7541923
$10,49 Unit Price incl. VAT
8
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
9
WASHER
7552604
$3,14 Unit Price incl. VAT
10
SCREW(10)
7512222
9999999
Not Available

Find the detailed ACCS SYSTEM 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
