1
Engine displacement
500
2
Year
1998
3
Trim
EURO 500 RMK - E982964
4
Parts Catalog
TUNNEL 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263A005)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263D002)
by
HOOD
TUNNEL 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263A005)
1
BUMPER HOOD
5410768
9999999
Not Available
2
MT CONSOLE RH
1011952067
Not Available
3
SCREW
7512057
9999999
Not Available
4
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
5
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
6
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
7
TUNNEL X-10 133
1012586
9999999
Not Available
7
TUNNEL ASM (LQ.X-10)EV BLK. Substituted by 1012361-067 (RMK) (Incl. 8 34-36)
1012361
Not Available
8
PANEL ASM TUNNELBACK
1012360067
Not Available
9
RIVET (10)
7661836
9999999
Not Available
10
RIVET
7621418
$2,09 Unit Price incl. VAT
11
FLAP SNOW (XTRA-12)
5432033
Not Available
12
BOLT
7512240
9999999
Not Available
13
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
14
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
15
BUMPER REAR
2670170
9999999
Not Available
16
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
17
RIVET (50)
7621342
9999999
Not Available
18
SKIRT SNOW LH
5432049070
Not Available
18
SKIRT SNOW RH
5432050070
Not Available
20
RIVET SEMI-TUBE (10)
7661840
9999999
Not Available
21
SCREW
7517388
9999999
Not Available
22
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
23
MT CONSOLE LH
1011951067
Not Available
24
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
25
STOP;SIDEPANEL BUMPER
5411172
9999999
Not Available
26
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
26
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
27
RIVET
7621452
9999999
Not Available
28
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
29
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
30
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
31
BULKHEAD ASMLIQBLK.
1012652067
Not Available
32
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available
33
RIVET(10)
7621222
9999999
Not Available
34
SNAP-MALE
7080227
9999999
Not Available
35
PAD RH FR.SUSP.MTG.
5241304067
Not Available
35
PAD LH FR.SUSP.MTG.
5241303067
Not Available
36
BRKTRHR.SUSPBLK.
1012564067
Not Available
36
BRKTLHR.SUSPBLK.
1012563067
Not Available
37
SCREW
7512091
9999999
Not Available

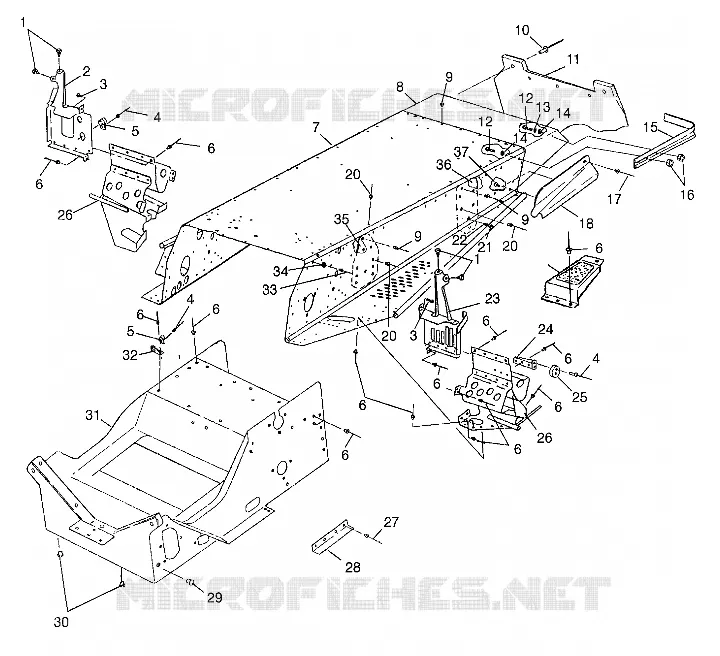

Find the detailed TUNNEL 500 RMK 0982964 AND EUROPEAN 500 RMK E982964 (4942634263A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
