Engine displacement
500
2
Year
2000
3
Trim
500 MAGNUM 4X4 HDS - A00CD50FA
4
Parts Catalog
TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
REAR HOUSING
by
CYLINDER
TRANSMISSION MOUNTING
-
1
1
2
2
2
2
3
4
5
5
6
7
7
8
8
9
9
10
11
11
11
11
-
1
1
2
2
2
2
3
4
5
5
6
7
7
8
8
9
9
10
11
11
11
11
-
1
1
2
2
2
2
3
4
5
5
6
7
7
8
8
9
9
10
11
11
11
11
-
1
1
2
2
2
2
3
4
5
5
6
7
7
8
8
9
9
10
11
11
11
11
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
SCREW
7515417
9999999
Not Available
2
NUT
7547108
$9,44 Unit Price incl. VAT
3
SCREW
7515398
9999999
Not Available
4
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
5
WASHER FLAT
7555976
$7,34 Unit Price incl. VAT
6
MOUNT R.TRANSMISSION
5242819067
Not Available
7
SCREW
7517289
9999999
Not Available
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
BOLT
7515522
$7,34 Unit Price incl. VAT
10
MOUNT TRANSMISSION BLK
5242820067
Not Available
11
ENGINE MOUNT; REAR; MEDIUM GLOSS BLACK
1013134067
Not Available
11
MOUNT REAR MOTOR BLK
1012975067
Not Available

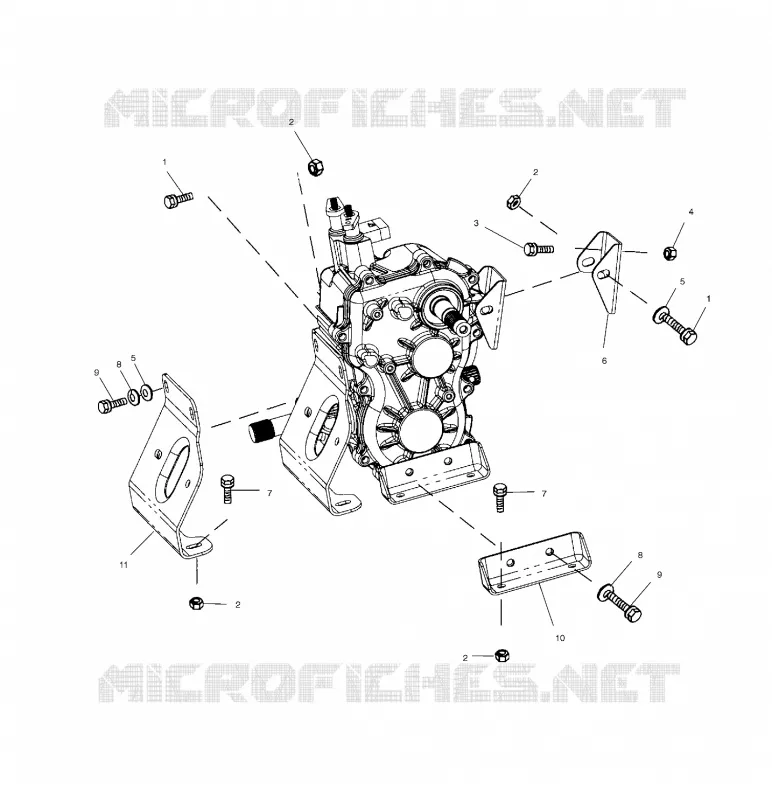

Find the detailed TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
