Engine displacement
500
2
Year
2000
3
Trim
500 MAGNUM 4X4 HDS - A00CD50FA
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
FUEL TANK
ENGINE MOUNTING
1
2
2
3
3
3
3
28
5
5
6
7
8
28
28
10
11
12
13
14
15
16
16
17
18
18
18
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
28
28
38
39
40
41
42
43
44
28
46
47
47
47
47
28
49
50
51
1
2
2
3
3
3
3
28
5
5
6
7
8
28
28
10
11
12
13
14
15
16
16
17
18
18
18
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
28
28
38
39
40
41
42
43
44
28
46
47
47
47
47
28
49
50
51
1
2
2
3
3
3
3
28
5
5
6
7
8
28
28
10
11
12
13
14
15
16
16
17
18
18
18
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
28
28
38
39
40
41
42
43
44
28
46
47
47
47
47
28
49
50
51
1
2
2
3
3
3
3
28
5
5
6
7
8
28
28
10
11
12
13
14
15
16
16
17
18
18
18
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
28
28
38
39
40
41
42
43
44
28
46
47
47
47
47
28
49
50
51
1
2
3
28
5
6
6
7
7
8
28
28
10
11
12
13
1
2
3
28
5
6
6
7
7
8
28
28
10
11
12
13
1
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
2
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
3
FUEL LINE; 600 CM
8450040600
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
FUEL LINE; 1/4 ID
84500031525
Not Available
6
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
7
LINE BREATHER 3/8 ID.
8450073600
Not Available
8
BRKT CARB.MT.
5240609067
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
11
CARBURETOR MOUNT; RUBBER
3021086
9999999
Not Available
12
WASHER
7552604
$3,14 Unit Price incl. VAT
13
BOLT(10)
7515106
9999999
Not Available
14
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
15
CABLE GND-ENGINE
4010132
9999999
Not Available
16
BOLT
7512315
$9,44 Unit Price incl. VAT
17
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
18
NUT
7547108
$9,44 Unit Price incl. VAT
19
MOUNT ENGINE TOP BLK
5242936067
Not Available
20
WASHER
7555823
$7,34 Unit Price incl. VAT
21
SPACER-MOTOR MNT TOP
5132007
9999999
Not Available
22
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
23
MOUNT-RUBBER TOP 60 DURO
3021045
9999999
Not Available
24
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
25
NUT LOCK
7542403
9999999
Not Available
26
SCREW
7517386
$2,09 Unit Price incl. VAT
27
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
MANIFOLD BLK
1260978029
Not Available
30
LOCK WASHER
3080530
9999999
Not Available
31
NUT
3080285
9999999
Not Available
32
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
33
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
34
MOUNT LOW.FR.ENGINE BLK.
5242818067
Not Available
35
SCREW
7515417
9999999
Not Available
36
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
38
BOLT
7512566
9999999
Not Available
39
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
40
WASHER
5210748
$7,34 Unit Price incl. VAT
41
BUSHING
5430261
$13,64 Unit Price incl. VAT
42
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
43
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
44
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
47
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
47
MOUNT RUBBER FRONT
3110046
9999999
Not Available
48
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
49
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT
50
RIVET
7621462
$2,09 Unit Price incl. VAT
51
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT

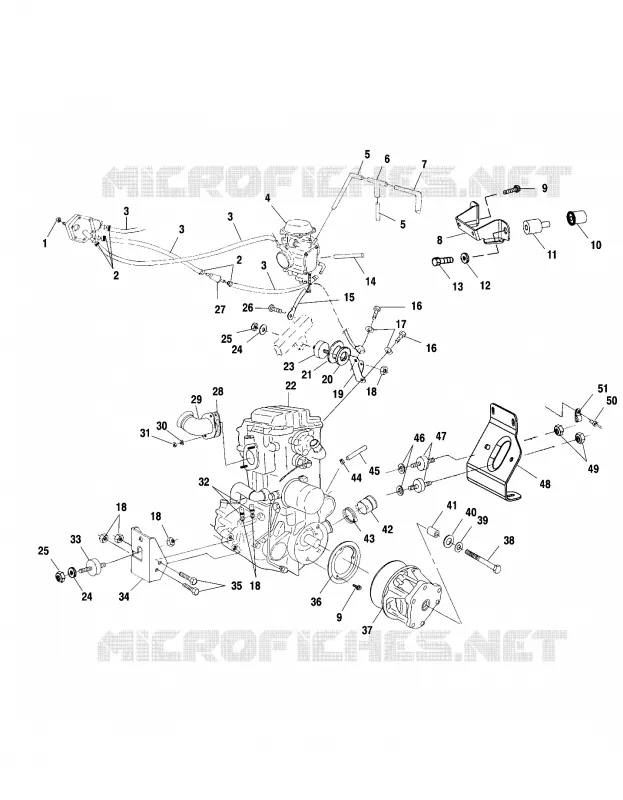

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
