DASHBOARD for POLARIS RANGER CREW XP 1000 NORTHSTAR EDITION ULTIMATE TRAIL BOSS from 2023

DASHBOARD

1

DASH ROUTER; UPPER; GLOSS BLACK

5456239070

Not Available

2

WRENCH-8MMX10MM OPEN END

Not Available

3

WRENCH-8MMX10MM OPEN END

Not Available

4

DASH-CONTROLS ROUTER BLK

5457828070

Not Available

5

DASH-STORAGE SPKR RTR HVAC BLK

5455831070

Not Available

6

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

7

DASH-MAIN ROUTER BLK

5456187070

Not Available

8

COVER-GLOVEBOX XP BLK

5456357070

Not Available

9

U-TYPE NUT; M6-1.0

7547674

$2,09 Unit Price incl. VAT

10

GLOVEBOX SEAL

5522237

5522052

$5,24 Unit Price incl. VAT

11

GROMMET-RUBBER MOUNT .25

5418500

$3,14 Unit Price incl. VAT

11

RUBBER GROMMET; MOUNT; 25 IN.

5412504

$7,34 Unit Price incl. VAT

12

BOLT

7519650

$7,34 Unit Price incl. VAT

13

BIN-GOVEBOX BLK ROUTER

5455723070

Not Available

14

HVAC BIN COVER; GLOSS BLACK

5454155070

Not Available

15

DISPLAY BEZEL; 7 IN; GLOSS BLACK

5454382070

Not Available

16

GAUGE DASH; HOOD; C4; GLOSS BLACK

5454158070

Not Available

17

GAUGE DASH; BEZEL; C4; GLOSS BLACK

5454159070

Not Available

18

PLUG SWITCH; BLANK

4018108

$26,24 Unit Price incl. VAT

19

GLOVEBOX HINGE PIN

5439091

$7,34 Unit Price incl. VAT

20

TURN LATCH CAM; 1/4

7081425

$11,54 Unit Price incl. VAT

21

SCR-M6X1X16 TR/TX-M

7518936

$7,34 Unit Price incl. VAT

22

GLOVEBOX COVER; UPPER

5453789070

Not Available

23

UPPER BIN GLOVEBOX; GLOSS BLACK

5453790070

Not Available

24

BOLT 5/8 LONG TORX PAN HEAD

7518238

$7,34 Unit Price incl. VAT

25

CUP HOLDER

5436836

$36,74 Unit Price incl. VAT

26

WELD-DASH SUPPORT;BLK

1024884329

Not Available

27

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

28

TRIM-GLOVEBOX XP PERF RED

5456615799

Not Available

29

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

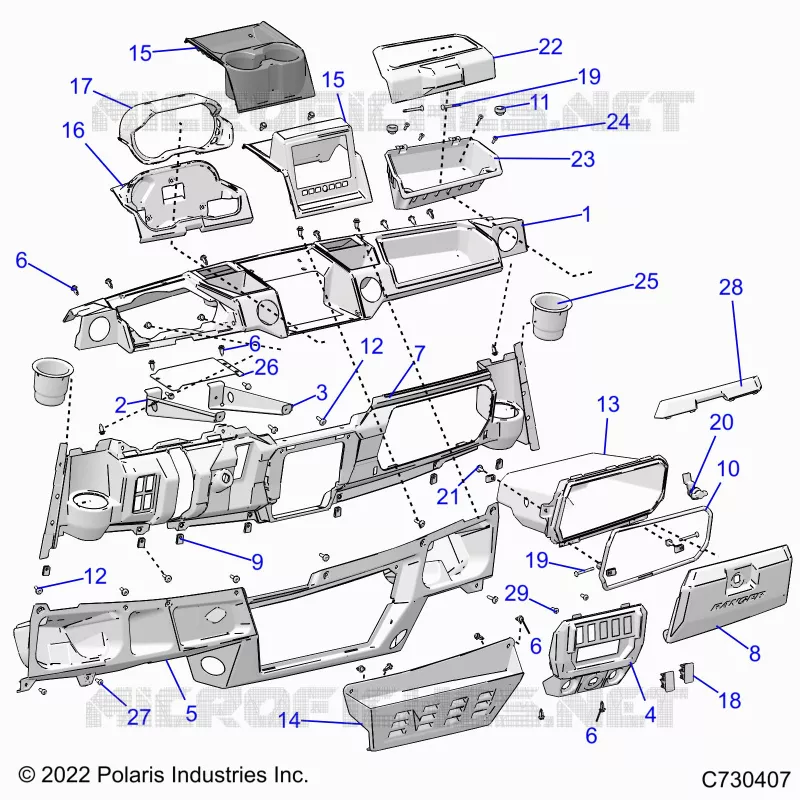

Find the detailed DASHBOARD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
