ENGINE, COOLING SYSTEM for POLARIS RANGER CREW XP 1000 NORTHSTAR EDITION ULTIMATE TRAIL BOSS from 2023

ENGINE, CRANKCASE AND CRANKSHAFT

CAM CHAIN AND TENSIONER

ENGINE, COOLING SYSTEM

1

ASM-FAN-500W

2416014

$771,74 Unit Price incl. VAT

2

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

3

HVAC CORE RADIATOR ASSEMBLY

1241164

$976,49 Unit Price incl. VAT

4

SHROUD-RADIATOR FRT HVAC

5457915070

Not Available

5

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

6

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

7

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

8

SURGE TANK

5439202

$178,49 Unit Price incl. VAT

9

GASKET

5810279

$4,19 Unit Price incl. VAT

10

FUEL LINE; 95 CM

845000395

Not Available

11

GROMMET

7052028

$11,54 Unit Price incl. VAT

12

COOLANT TUBE

5340378

$120,74 Unit Price incl. VAT

13

HOSE-COOLANT 3WAY TO ENG

5416357

$62,99 Unit Price incl. VAT

14

SHROUD-FAN HVAC

5458272

$220,49 Unit Price incl. VAT

15

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

16

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

17

UPPER HOSE; RAD

5416209

$141,74 Unit Price incl. VAT

18

ENGINE HOSE OUTLET

5416140

$89,24 Unit Price incl. VAT

19

HOSE-COOLANT 3WAY-HEATER

5416211

$62,99 Unit Price incl. VAT

20

ENGINE HOSE

5416139

$29,39 Unit Price incl. VAT

21

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

22

RADIATOR MOUNT BRACKET; BLACK

5263654329

Not Available

23

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

24

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

25

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

26

COOLANT TUBE

5340377

$120,74 Unit Price incl. VAT

27

SCREW

7512026

$2,09 Unit Price incl. VAT

28

CLIP-COOLANT ROUTING

5453767

$10,49 Unit Price incl. VAT

29

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

30

TEE CONNECTOR; 1 X 1 X 0.5

7052530

$10,49 Unit Price incl. VAT

31

CAP

1240694

$73,49 Unit Price incl. VAT

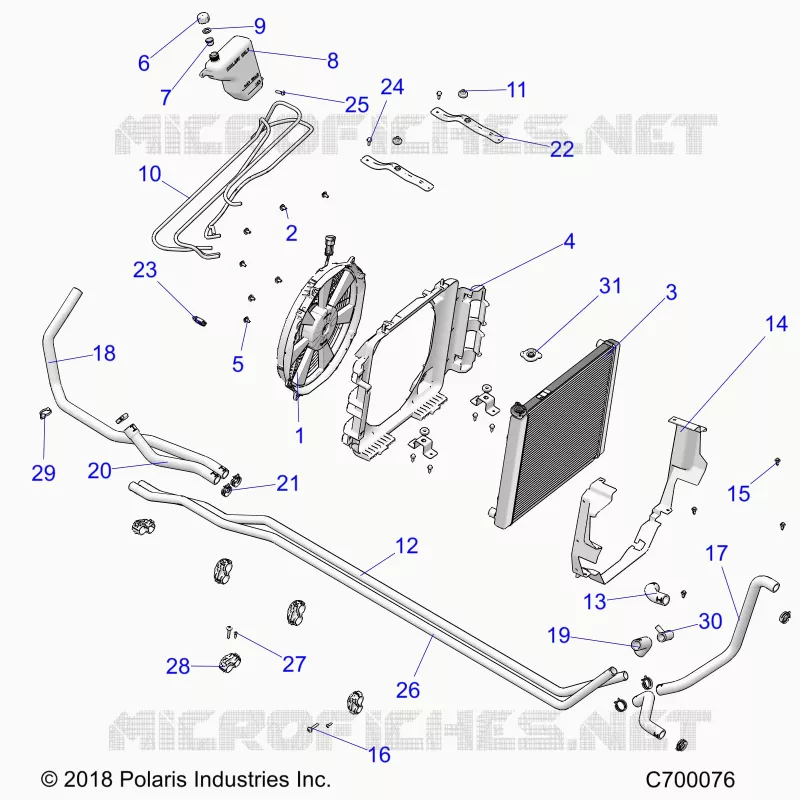

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
