Engine displacement
800
2
Year
2003
3
Trim
800 XCR
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
FRONT TORQUE ARM
STEERING
12
12
13
13
14
15
15
16
17
18
19
20
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
1
ASM-STEERING RACKW/WEBBSLHP
1820691
9999999
Not Available
2
O RING
5411220
$11,54 Unit Price incl. VAT
3
TUBE SPACER
5010384
9999999
Not Available
4
IDLER ARM
1820579
9999999
Not Available
5
NUT LOCK
7542403
9999999
Not Available
6
NUT;FLEX LOCK
7547029
9999999
Not Available
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
BUSHING
3563907
$7,34 Unit Price incl. VAT
9
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
10
SPACER
5010468
9999999
Not Available
11
ARM PITMAN ASM.
1822562
9999999
Not Available
12
HI-ANGLE ROD END; RIGHT; 3/8
7060174
$99,74 Unit Price incl. VAT
13
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
14
ROD DRAGLINK
5333411
9999999
Not Available
15
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
16
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
17
BOLT
7512404
$7,34 Unit Price incl. VAT
18
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
19
NUT FLEX-LOC
7542303
9999999
Not Available
20
CABLE TIE-RELEASABLE;5 1/2
7080804
$6,29 Unit Price incl. VAT
21
RIVET
7661637
$2,09 Unit Price incl. VAT
22
STEERING HOOPTRIPLEBLK
1012902067
Not Available
23
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
24
BOLT-CARRIAGE
7512275
9999999
Not Available
25
PLATE BRG.SUPPORT B HD.
5211806067
Not Available
26
WASHER
7555965
9999999
Not Available
27
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
28
TORQUE STOP;WELD
1013177
9999999
Not Available
29
NUT HEX
7542414
$9,44 Unit Price incl. VAT
30
STOP TORQUE COURSE
3110078
9999999
Not Available
31
BOOT TIEROD MOD
5411249
9999999
Not Available
32
PLATE BOOT MOD
5211796067
Not Available
33
POP RIVET
7621323
$2,09 Unit Price incl. VAT
34
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
35
SCREW (10)
7517402
9999999
Not Available
36
WASHER
7556053
9999999
Not Available
37
SCREW
7515434
9999999
Not Available
38
SCREW
7517574
9999999
Not Available
39
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
40
ROD END; LEFT
7060166
$99,74 Unit Price incl. VAT
41
ROD-TIE
5020970
9999999
Not Available
42
BOLT
7517428
$4,19 Unit Price incl. VAT
43
BRKT BOLT RETAINER
5241997
9999999
Not Available

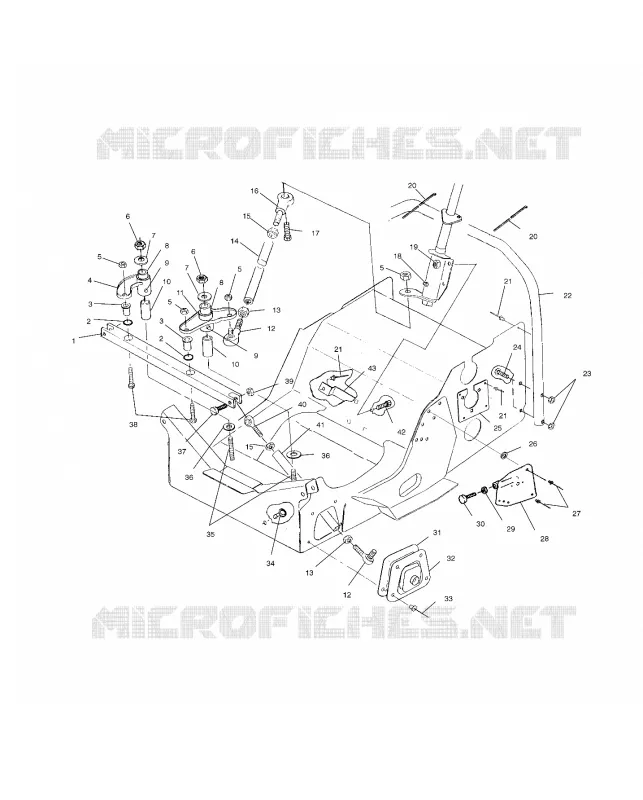

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
