Engine displacement
800
2
Year
2003
3
Trim
800 XCR
4
Parts Catalog
CARBURETOR
5
Parts Diagram
Parts Catalog
CARBURETOR
by
MAGNETO
CARBURETOR
1
2
20
4
5
6
7
8
9
10
11
12
13
1
2
20
4
5
6
7
8
9
10
11
12
13
1
2
20
4
5
6
7
8
9
10
11
12
13
1
2
20
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
20
24
25
-
1
1
1
2
2
2
20
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
20
24
25
-
ASM-CARBURETOR
3131417
9999999
Not Available
1
SCREW
3130833
$7,34 Unit Price incl. VAT
2
LEVER
3130832
$47,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
LEVER STARTER
3130819
$62,99 Unit Price incl. VAT
5
SCREW
3130821
$13,64 Unit Price incl. VAT
6
BRACKET
3130820
9999999
Not Available
7
SCREW
3130816
9999999
Not Available
8
SPRING
3130817
9999999
Not Available
9
ADJUSTER
3130812
9999999
Not Available
10
SPRING
3130811
9999999
Not Available
11
BRACKET
3130815
9999999
Not Available
12
SCREW
3130810
9999999
Not Available
13
SPRING
3130814
9999999
Not Available
14
RING
3130853
9999999
Not Available
15
SHAFT ASM.
3131006
9999999
Not Available
16
SCREW
3130809
9999999
Not Available
17
RING
3131004
9999999
Not Available
18
E-RING
3130990
9999999
Not Available
19
SPRING SHAFT
3130841
9999999
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
PACKING
3130988
9999999
Not Available
22
SHAFT
3131011
9999999
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
NIPPLE ASSEMBLY
3131008
$68,24 Unit Price incl. VAT
25
BOLT
3131007
9999999
Not Available

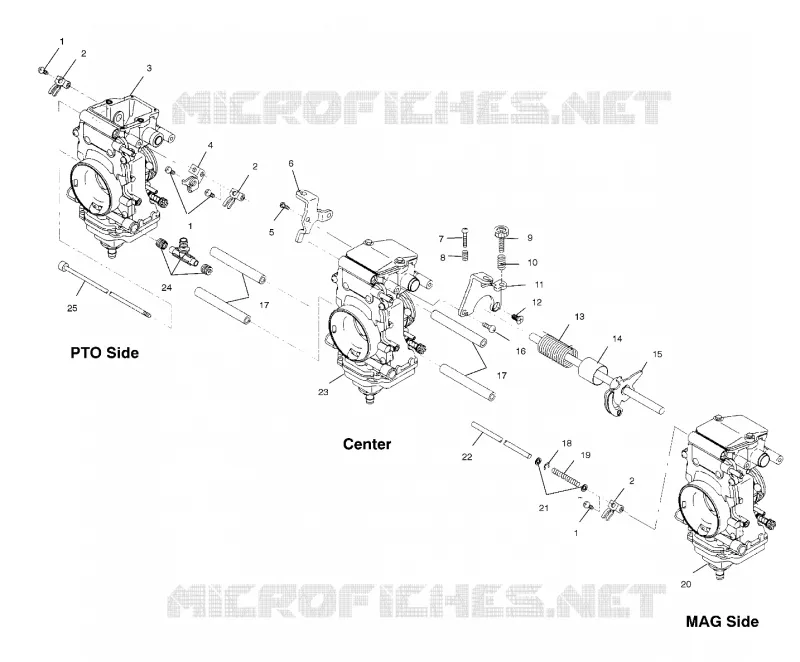

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
