1
Engine displacement
autre
2
Year
2002
3
Trim
XPLORER 4X4 - A02CG25CA
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
CLUTCH COVER
DRIVEN CLUTCH
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
1
SPACER
5010266
9999999
Not Available
2
WASHER .906 X 1.38 X .060 IN
7556120
$2,09 Unit Price incl. VAT
3
ORV DRIVE BELT
3211077
$107,93 Unit Price incl. VAT
4
ASM. CLUTCH DRIVEN HVY RET
1322180
9999999
Not Available
5
DOMED WASHER
5220646
$4,19 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
BOLT
7515382
$4,19 Unit Price incl. VAT
8
WASHER 1.50 X 2.00 X .025
7556076
$9,44 Unit Price incl. VAT
8
WASHER 1.5 X 2.0 X .020
7555898
$2,09 Unit Price incl. VAT
9
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
10
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
11
BUSHING MOVEABLE 1 IN
3576511
$52,49 Unit Price incl. VAT
12
CLUTCH SPRING; RED
7041198
$104,99 Unit Price incl. VAT
13
RAMP; SPRING
5131446
9999999
Not Available
14
SPACER .020
5210752
$3,14 Unit Price incl. VAT
15
RETAINING RING
7710448
$5,76 Unit Price incl. VAT
16
BOLT (10)
7511854
$2,09 Unit Price incl. VAT
17
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT

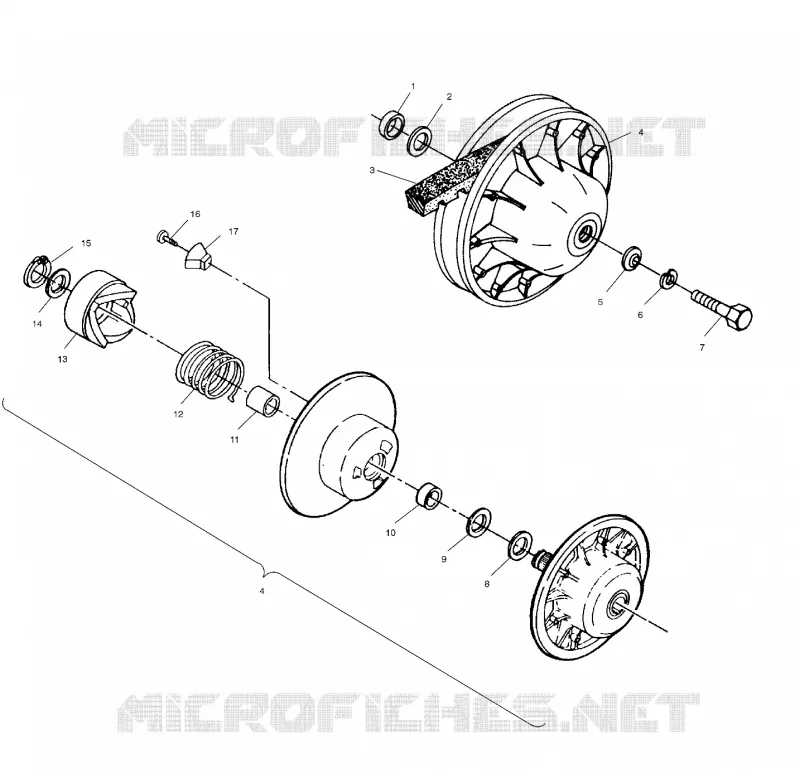

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
