Parts Catalog
WHEEL (FRONT)
5
Parts Diagram
Parts Catalog
CV JOINT/NEAPCO
by
CONTROLS
WHEEL (FRONT)
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
1
1
1
1
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
10
10
10
11
12
13
14
15
15
16
17
18
1
BOLT
7512325
$4,19 Unit Price incl. VAT
2
DISC BRAKE 7.21 OD .150
5243675
9999999
Not Available
3
HUB SEAL; FRONT
3610019
$68,24 Unit Price incl. VAT
4
ARMATURE PLATE
5211148
$52,49 Unit Price incl. VAT
5
CLUTCH HUB; FRONT
1520281
9999999
Not Available
6
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
7
STUD
7515523
$5,76 Unit Price incl. VAT
8
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
9
HUB ASM;SHRT(3-LOBE)W/BRG RACE
1520243
9999999
Not Available
10
ROLL CAGE
3250028
9999999
Not Available
11
ROLL
3250010
9999999
Not Available
12
GARTER SPRING
3250032
9999999
Not Available
13
SPACER
1321814
9999999
Not Available
14
CAM
3250030
9999999
Not Available
15
MAGNETIC DRAIN PLUG
7052045
$26,24 Unit Price incl. VAT
16
TIRE 23X7-10 TITAN
5411264
9999999
Not Available
17
WASHER
7556004
$13,64 Unit Price incl. VAT
18
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
19
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
20
O-RING
5410470
$4,19 Unit Price incl. VAT
21
CAP; HUB; 3 LOBE; AWD
5432611
9999999
Not Available
22
SCREW
7512027
$2,09 Unit Price incl. VAT
23
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT
24
RIM FRT (SILVER)
1520175117
Not Available
25
RIM VALVE
1525017
$12,59 Unit Price incl. VAT

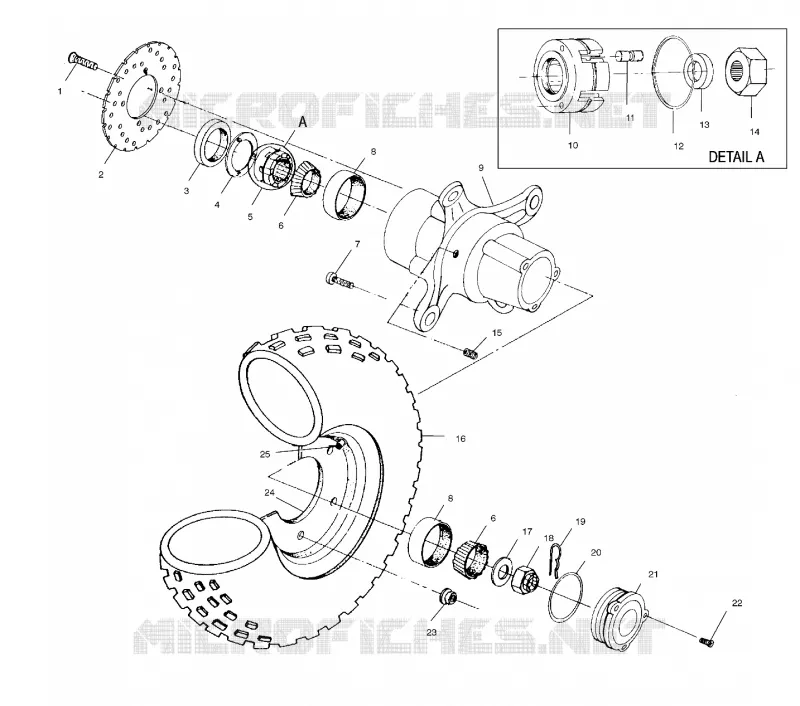

Find the detailed WHEEL (FRONT) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
