DRIVE TRAIN, SECONDARY CLUTCH
1
2
3
4
5
14
7
8
9
10
11
12
13
14
1
DRIVEN CLUTCH ASSEMBLY
1323070
$650,99 Unit Price incl. VAT
2
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
3
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
4
ORV DRIVE BELT
3211206
3211149
$236,24 Unit Price incl. VAT
5
SCR-TORX M6X1.0X16
7519735
$17,84 Unit Price incl. VAT
6
THRUST WASHER
7556745
$10,49 Unit Price incl. VAT
7
SECONDARY CLUTCH ROLLER
5439831
$68,24 Unit Price incl. VAT
8
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
9
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
COMPRESSION SPRING; BLACK
7044015
$89,24 Unit Price incl. VAT
12
CUP-SPRING BOSS LW UTILITY
5256403
$83,99 Unit Price incl. VAT
13
PLATE-RETAINER; BOSS LW UTLTY
5256404
$68,24 Unit Price incl. VAT
14
THRUST WASHER
7556745
$10,49 Unit Price incl. VAT

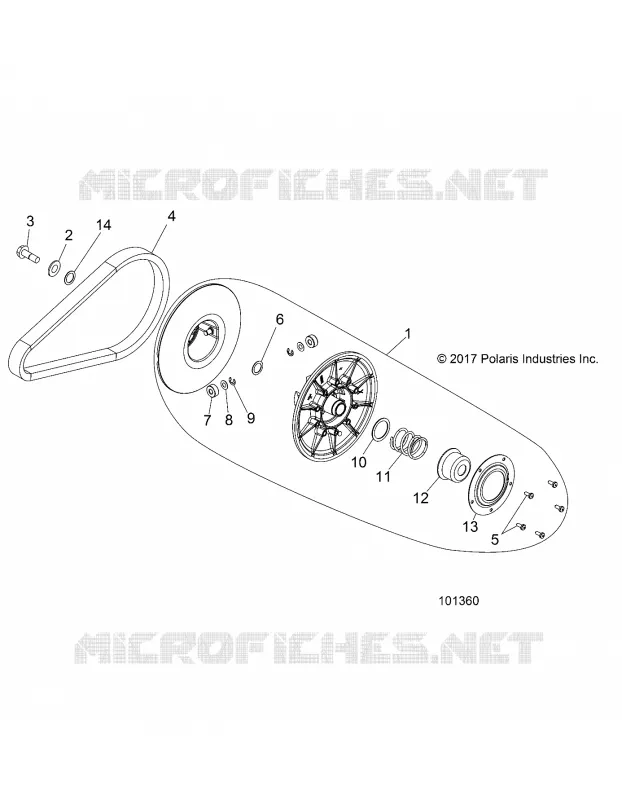

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
