Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
by
DRIVE TRAIN, REAR HALF SHAFT
DRIVE TRAIN, PRIMARY CLUTCH
-
-
BASIC DRIVE CLUTCH BEARING ASSEMBLY
1323255
$992,24 Unit Price incl. VAT
1
DU BUSHING; 1.75
3514492
$54,59 Unit Price incl. VAT
2
CLUTCH WASHER
7556335
$11,54 Unit Price incl. VAT
3
SPRING CLUTCH 35-240
7043594
$89,24 Unit Price incl. VAT
4
BEARING COVER; .75 IN
3514684
$27,29 Unit Price incl. VAT
5
BUSHING
5430261
$13,64 Unit Price incl. VAT
6
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
7
ATV CLUTCH BOLT; 7/16 X 20 X 8
7519287
$52,49 Unit Price incl. VAT
8
WASHER
5210748
$7,34 Unit Price incl. VAT
9
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
10
CLUTCH BUTTON
5439254
$14,69 Unit Price incl. VAT
11
ROLLER PIN
5020422
$4,19 Unit Price incl. VAT
12
WASHER CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
13
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
14
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
15
CLUTCH WEIGHT
5632409
$62,99 Unit Price incl. VAT
16
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT
17
NEEDLE BEARING
3514609
$60,89 Unit Price incl. VAT
18
CLUTCH SPACER
5633000
$52,49 Unit Price incl. VAT
19
SPACER CLUTCH LIMITER
5438823
$12,59 Unit Price incl. VAT

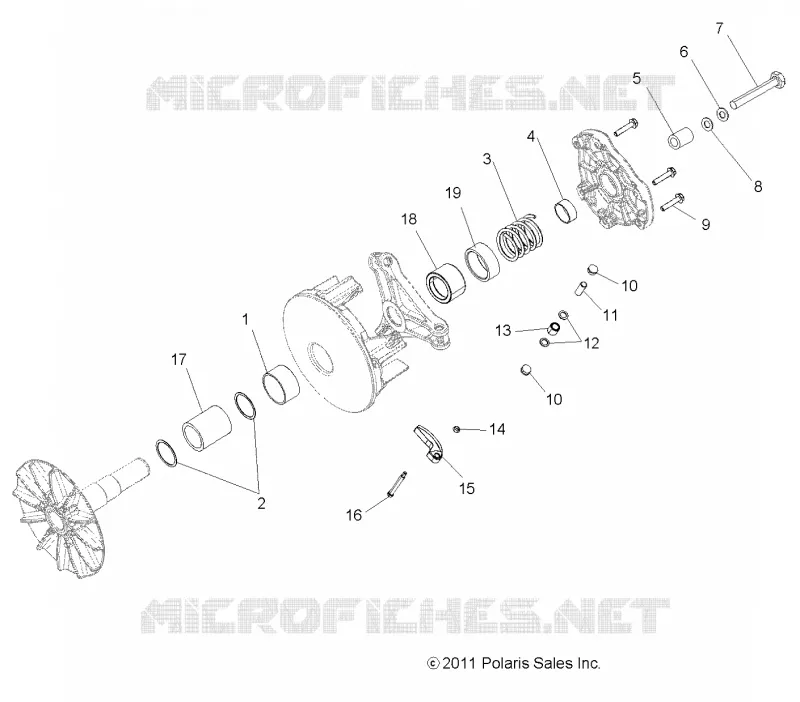

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
