1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
DRIVE TRAIN, REAR MID DRIVE SHAFT
REAR SUSPENSION
1
WHEEL CARRIER BEARING; MACHINED
5137436
$175,34 Unit Price incl. VAT
1
WHEEL CARRIER BEARING; LEFT; MACHINED
5139363
$188,99 Unit Price incl. VAT
2
BEARING BUSHING CARRIER; 7/16
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL; LOWER; BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER
7555740
$3,14 Unit Price incl. VAT
5
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
6
BOLT 7/16 X 14 X 2.75 GRADE 5
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
IRS SHOCK; RIGHT; REAR; 6 X 6
7043451
$430,49 Unit Price incl. VAT
10
CAM SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
11
BUSHING-A-ARM-SHORT BLK
5438895
5439270
$4,19 Unit Price incl. VAT
12
COMPRESSION SPRING; 130/165; GS BLK
7041986067
Not Available
13
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
14
NUT-3/8-24 HEX LOC;GR8
7547344
$1,56 Unit Price incl. VAT
15
SHOCK PROTECTOR SLEEVE
5433551
9999999
Not Available
16
STRAP-REAR GEARCASE;6X6;BLK
5252941067
Not Available
17
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
18
CONTROL ARM WELD; UPPER; LEFT; GS BLK
1014320067
Not Available
18
CONTROL ARM WELD; UPPER; RIGHT; GS BLK
1014321067
Not Available
19
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
20
BOLT 3/8-24 X 12.25
7519065
$36,74 Unit Price incl. VAT
21
TUBE-PIVOT .625ODX.385IDX11.12
5137562
$62,99 Unit Price incl. VAT
22
CONTROL ARM; LOWER; LEFT SIDE; GS BLK
1015888067
Not Available
22
CONTROL ARM; LOWER; RIGHT SIDE; GS BLK
1015889067
Not Available
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
SHIELD-CV REAR BASIC BLK RH
5435009070
Not Available
24
BASIC CV SHIELD; REAR; LEFT; GLOSS BLACK
5435008070
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
BOLT
7515472
$4,19 Unit Price incl. VAT

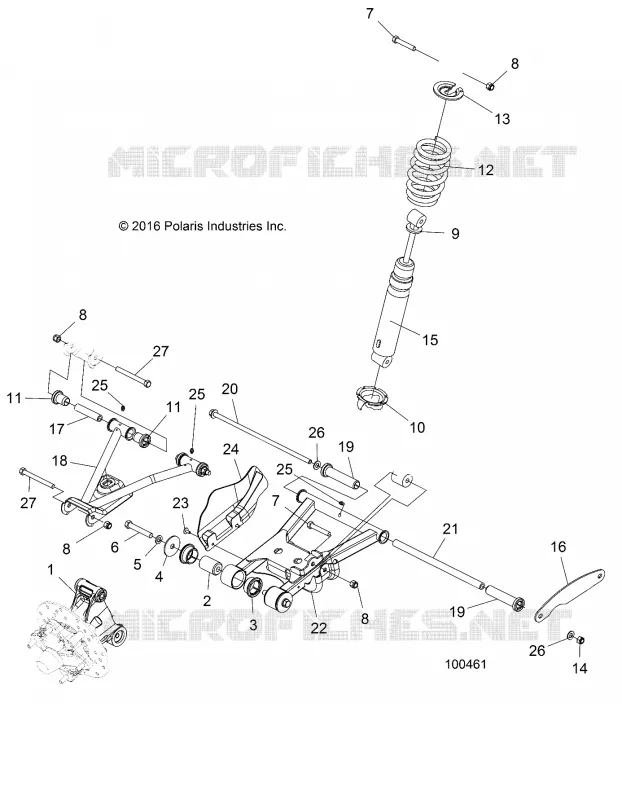

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
