1
Engine displacement
570
2
Year
2018
3
Trim
570 SPORTSMAN 6X6
4
Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
DRIVE TRAIN, REAR GEARCASE MOUNTING
DRIVE TRAIN, REAR GEARCASE INTERNALS
1
GEARCAES ASSEMBLY REAR
1333620
1337302
$2 435,99 Unit Price incl. VAT
2
TUBE VENT
3233524
$15,74 Unit Price incl. VAT
3
ASM-DRIVE REAR
3235952
3239471
$824,24 Unit Price incl. VAT
4
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
5
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
6
GEARCASE-REAR HOUSING (MACH)
3235951
$1 097,24 Unit Price incl. VAT
7
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
8
TRIPER LIP SEAL
3233878
$57,74 Unit Price incl. VAT
9
HI TEMP TRI LIP SEAL; 25 X 80 X 10
3235658
$104,99 Unit Price incl. VAT
10
RING-RETAINING BEVELED INTERNA
3234158
$41,99 Unit Price incl. VAT
11
BALL BEARING
3233714
9999999
Not Available
12
SHAFT-PINION 10T STRAIGHT BVL
3233881
$325,49 Unit Price incl. VAT
13
BUSHING
3233577
$36,74 Unit Price incl. VAT
14
GEAR; 31T; STRAIGHT BEVEL
3235966
3239662
Not Available
15
SHIM; 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
16
BUTTON THRUST
3233582
$13,64 Unit Price incl. VAT
17
O-RING; 2-165
3235967
$52,49 Unit Price incl. VAT
18
SHIM; .450 X .265
3233583
$52,49 Unit Price incl. VAT
19
PLUG; .75 HOLLOW HEX MAGNETIC
3234529
3233794
$31,49 Unit Price incl. VAT

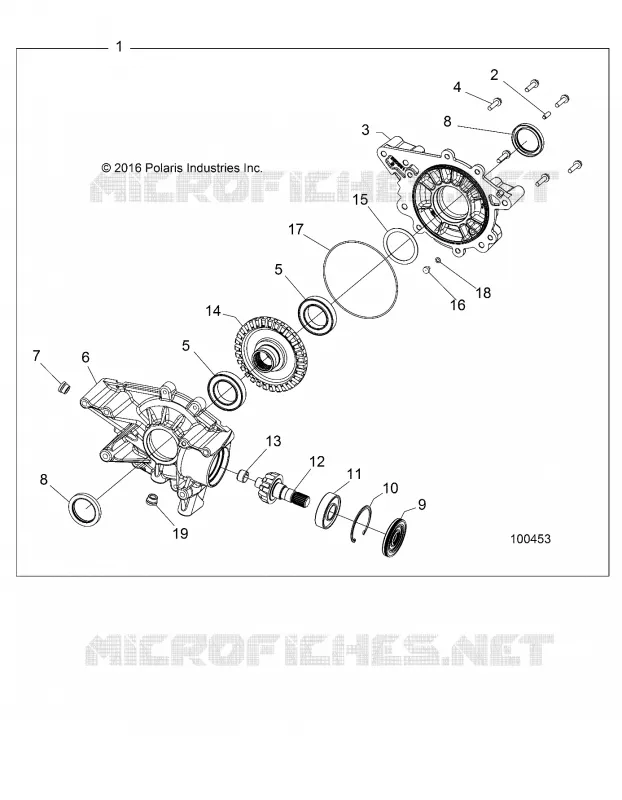

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
