1
Engine displacement
autre
2
Year
1992
3
Trim
SWE LITE GT - S923133
4
Parts Catalog
RACK TUNNEL EXTENSION INDY LITE GT (4921342134023A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM INDY LITE GT (4921342134017A)
by
CRANKCASE INDY LITE GT (4921342134025A)
RACK TUNNEL EXTENSION INDY LITE GT (4921342134023A)
1
RACK; REAR
2670129
2670129-067
Not Available
2
PANEL R.CLOSEOFF
5222608067
Not Available
3
RIVET(50)
7621470
9999999
Not Available
4
NUT HEX-LOCK(10)
7542101
$7,34 Unit Price incl. VAT
5
BOLT
7515107
9999999
Not Available
6
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
7
RIVET
7621418
$2,09 Unit Price incl. VAT
8
PROTECTOR; BED
5410619
9999999
Not Available
9
TUBE RH TUNNEL BLK.
5224466067
Not Available
10
TUBE LH TUNNEL BLK.
5224461067
Not Available
11
BRKT;RH R.SUSP;BLK.
1011780067
Not Available
11
BRKT LH R.SUSP BLK.
1011779067
Not Available
12
NUT; LOCK
7542131
9999999
Not Available
13
TAILLIGHT ASSEMBLY
4030041
9999999
Not Available
14
SCREW(10)
7511985
Not Available
15
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
16
DECAL WARN. RACK [No Longer Available]
7073290
Not Available
17
DECAL TRACK/RACK LITE GT [No Longer Available]
7073291
Not Available
18
HITCH WELD; BLK.
1011624067
Not Available
19
HITCH
1011518
1011518-458
$54,59 Unit Price incl. VAT
20
SCREW
7512490
$7,34 Unit Price incl. VAT
21
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
22
CLEVIS PIN
7662209
$17,84 Unit Price incl. VAT
23
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
24
DECAL TUNNEL #GT# [No Longer Available]
7073350
Not Available
25
RIVET(50)
7621453
9999999
Not Available
26
BOLT(10)
7515106
9999999
Not Available

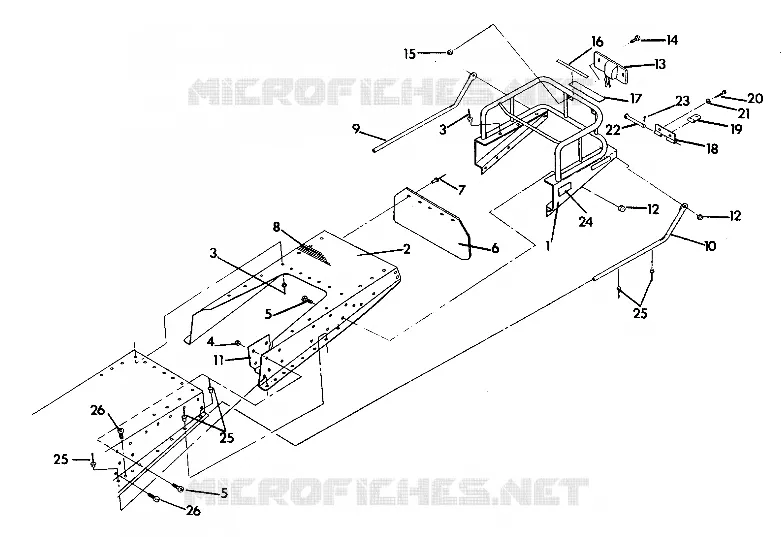

Find the detailed RACK TUNNEL EXTENSION INDY LITE GT (4921342134023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
