1
Engine displacement
autre
2
Year
1992
3
Trim
SWE LITE GT - S923133
4
Parts Catalog
BLOWER HOUSING/RECOIL STARTER INDY LITE GT (4921342134029A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING INDY LITE GT (4921342134021A)
by
OIL PUMP INDY LITE GT (4921342134030A)
BLOWER HOUSING/RECOIL STARTER INDY LITE GT (4921342134029A)
-
RECOIL STARTER
3083588
9999999
Not Available
1
ASM. CASE STARTER
3083589
9999999
Not Available
2
SPIRAL SPRING
3083376
3023393
$278,24 Unit Price incl. VAT
3
REEL ASSEMBLY
3083377
$104,99 Unit Price incl. VAT
4
RATCHET
3083378
9999999
Not Available
5
RETURN SPRING
3083463
9999999
Not Available
6
FRICTION SPRING
3083379
9999999
Not Available
7
FRICTION PLATE
3083464
9999999
Not Available
8
NUT FLANGE(10)
3083381
9999999
Not Available
9
ROPE GUIDE
3083107
3040171
$6,08 Unit Price incl. VAT
10
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
11
PULLEY-STARTING
3083108
9999999
Not Available
12
ASM. BOLT&WASHER
3083729
9999999
Not Available
13
ASM. BOLT AND WASHER(10)
3081665
9999999
Not Available
14
CLAMP
3083590
9999999
Not Available
15
HOUSING BLOWER#2
3083591
9999999
Not Available
16
ASM. BOLT & WASHER
3081663
9999999
Not Available
17
BAFFLE CYL.#1
3083592
Not Available
18
BAFFLE; CYL.#2
3083593
9999999
Not Available
19
BAFFLE CYL.#3
3083594
Not Available
20
GASKET INTAKE
3083595
9999999
Not Available
21
BOLT&WASHER ASM(10)
3083715
9999999
Not Available
22
HANDLE STARTER Substituted by 2870500
3081578
Not Available
23
NUT(10)
3084375
9999999
Not Available
24
WASHER SPRING(10)
3080077
9999999
Not Available

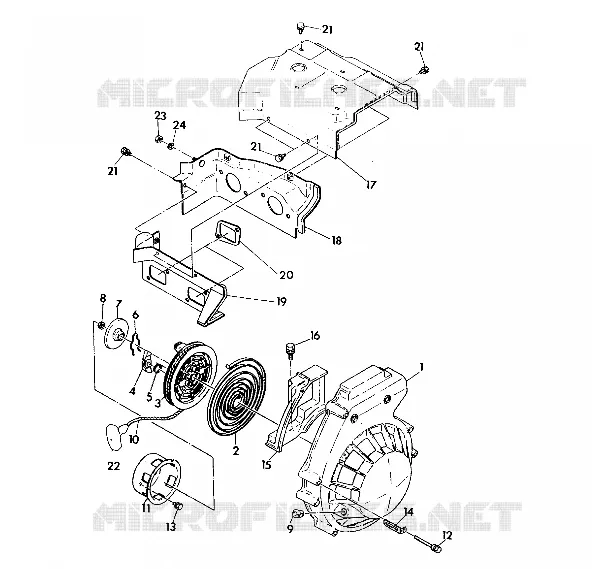

Find the detailed BLOWER HOUSING/RECOIL STARTER INDY LITE GT (4921342134029A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
