DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH (ELECTRIC START MODELS)
by
OIL TANK/AIR BOX
DRIVEN CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-
1
1
2
3
4
4
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
-
ASM-DRVN CLTCHBSC#216HP
1322433
9999999
Not Available
1
SCR-10-24X.375TTHD TEAM#105099
7518023
9999999
Not Available
2
PLATE-WINDAGE MOVTEAM#430085
5246216
9999999
Not Available
3
SCREW-CAP TORX SFCH1/4-28X.625
3233996
3235592
$10,49 Unit Price incl. VAT
4
RAMP-DRVN 56/42-.36 ER
5134095
9999999
Not Available
4
RAMP-DRVN 58/42-.36 ER
5134132
9999999
Not Available
5
EXTERNAL RETAINING RING; 1.500
7710522
$25,19 Unit Price incl. VAT
6
SECONDARY CLUTCH ROLLER
5434534
$89,24 Unit Price incl. VAT
7
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
8
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
9
DRIVEN CLUTCH SPRING; LEFT; BLACK
7043063
$115,49 Unit Price incl. VAT
9
SPRING-DRVN CLTCH;LH RED/BLUE
7043057
$89,24 Unit Price incl. VAT
9
SPRING-DRVN CLTCHLHRED/BLK
7043058
9999999
Not Available
10
WASHER-THRUST
7556227
$41,99 Unit Price incl. VAT
11
SPACER; 1.640 X 3.125 X .062
3234033
9999999
Not Available
12
SCR-1/4-20X1.25 TX
7518024
3236575
$9,44 Unit Price incl. VAT
13
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
14
PLATE-WINDAGE STAT-TEAM#430086
5246217
9999999
Not Available

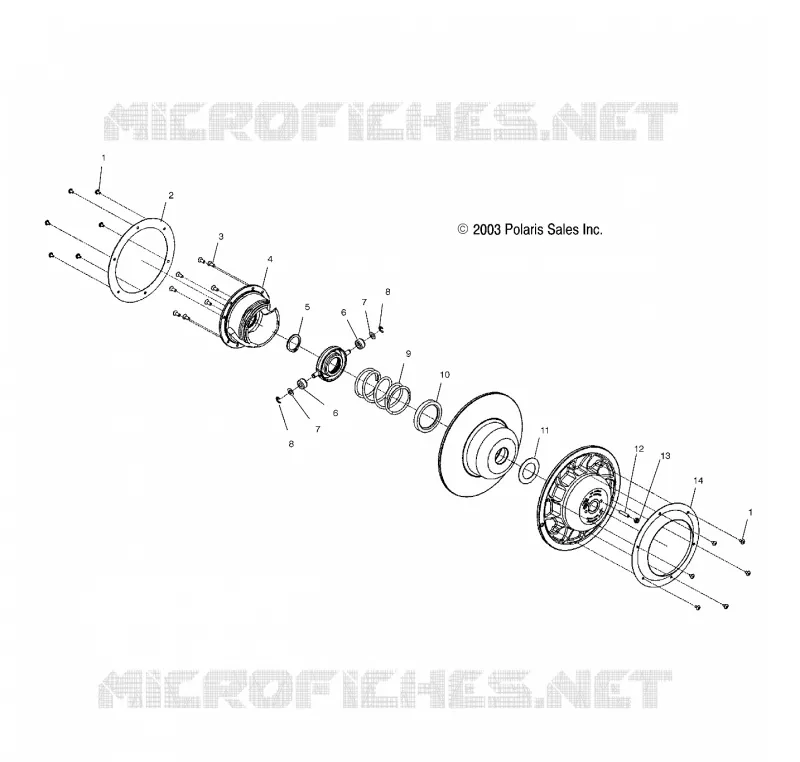

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
