Engine displacement
500
2
Year
2004
3
Trim
500 / 600 XC SP EDGE / M-10
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CARBURETOR
CYLINDER
1
2
3
4
5
6
1
2
2
3
4
5
6
7
8
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
25
26
26
27
28
29
29
30
1
TEMPERATURE SENSOR
4010398
9999999
Not Available
2
SCREW 8 MM X 1.25 MM X 55 MM
7517533
$8,39 Unit Price incl. VAT
2
SCREW
7517281
$13,64 Unit Price incl. VAT
3
WASHER
7556082
$13,64 Unit Price incl. VAT
4
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
5
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
6
COVER-THERMOSTAT M6 BLEED LG
5631391
9999999
Not Available
7
O-RING LIP SEAL
5411521
9999999
Not Available
8
COVER-HEAD 77.25 600 LBTY RED
5631425366
Not Available
8
COVER-HEAD 70.5 500 LBTY BLK
5631424329
Not Available
9
O-RING
5411411
$1,56 Unit Price incl. VAT
10
SEAL
5411465
$57,74 Unit Price incl. VAT
11
HEAD-CYL 70.5 3/4 SEMI/SOLID
3021453
9999999
Not Available
11
HEAD-CYL 77.25MM W/OMA
3021322
9999999
Not Available
12
O-RING
5410932
$36,74 Unit Price incl. VAT
12
O-RING
5411199
9999999
Not Available
13
O-RING
5411359
$23,09 Unit Price incl. VAT
14
NUT
7547013
$3,14 Unit Price incl. VAT
15
GASKET-BASE TO CYL EXH VALVE (10)
5812350
5815584
$11,54 Unit Price incl. VAT
16
ASM-BASE EXH VALVE DOM
1202216
9999999
Not Available
17
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
18
CAP/NUT BELLOWS-EXH VALVE DOM
5631381
5631687
$52,49 Unit Price incl. VAT
19
HOUSING WITH BUSHING ASSEMBLY
1202640
$27,29 Unit Price incl. VAT
20
SCREW
7516820
$10,49 Unit Price incl. VAT
21
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
22
COMPRESSION SPRING PINK/YELLOW
704178611
Not Available
22
COMPRESSION SPRING; GREEN/YELLOW
704178608
Not Available
23
BELLOWS-FABRIC POLYESTER
5412399
5414495
$89,24 Unit Price incl. VAT
24
VALVE-GUILLOTINE 600 FORGED
5133380
9999999
Not Available
24
VALVE-GUILLOTINE 500;FORGED
5133379
9999999
Not Available
25
CYLINDER 77.25
3021333
9999999
Not Available
25
CYLINDER 70.5
3021334
9999999
Not Available
26
CYLINDER GASKET BASE WEB
5812494
9999999
Not Available
26
GASKET-CYLINDER BASE
5811916
9999999
Not Available
27
FITTING-3/4NPT-1 IN HOSE BRASS
7052234
9999999
Not Available
28
THERMOSTAT-120 F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
29
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
29
SCREW
7516818
$10,49 Unit Price incl. VAT
30
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT

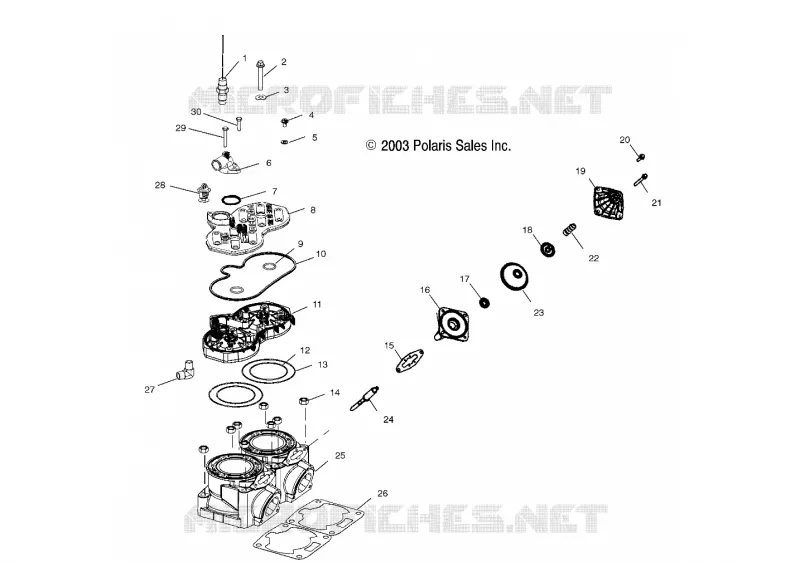

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
