BODYWORK for POLARIS RANGER DIESEL HD EPS from 2024

BODYWORK

1

WELD-BOX LATCH;BLK

1026726458

Not Available

2

WELD-BRKT-SPACER LH ECOAT

1027683329

Not Available

3

WELD-BRKT-SPACER RH ECOAT

1027684329

Not Available

4

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

5

RIVET

7621460

$2,09 Unit Price incl. VAT

6

WELD-BOX SUPPORT;HVAC;BLK

1026798329

Not Available

7

BOX BUMPER

5414343

$10,49 Unit Price incl. VAT

8

BOX BUSHING; LATCH

5434226

$7,34 Unit Price incl. VAT

9

BOX HANDLE LATCH

5450278

$62,99 Unit Price incl. VAT

10

BRKT-PLATE CAM ECOAT

5271383329

Not Available

11

DUMP BOX SHOCK

7045663

7046185

$125,99 Unit Price incl. VAT

12

HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM

7519363

7528444

$4,19 Unit Price incl. VAT

13

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$5,24 Unit Price incl. VAT

14

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

15

HITCH PIN CLIP; .148 X 3 1/16

7661067

$4,19 Unit Price incl. VAT

16

CLEVIS PIN; 1/2 X 1 3/4

7661878

$4,19 Unit Price incl. VAT

17

BUMPER-LOCATING HVAC

5459730

$73,49 Unit Price incl. VAT

18

WASHER

7556045

$16,79 Unit Price incl. VAT

19

ROLLER-CAM LATCH

5458307

$10,49 Unit Price incl. VAT

20

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

21

SCR-HXFL-M8X1.25X70 10.9 ZFB

752133270

Not Available

22

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

23

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

24

SPRING

7041687

$12,59 Unit Price incl. VAT

25

BOLT

7519650

$7,34 Unit Price incl. VAT

26

SCR-TXPH-#14X5/8 HI/LO CLR

7520803

$6,29 Unit Price incl. VAT

27

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

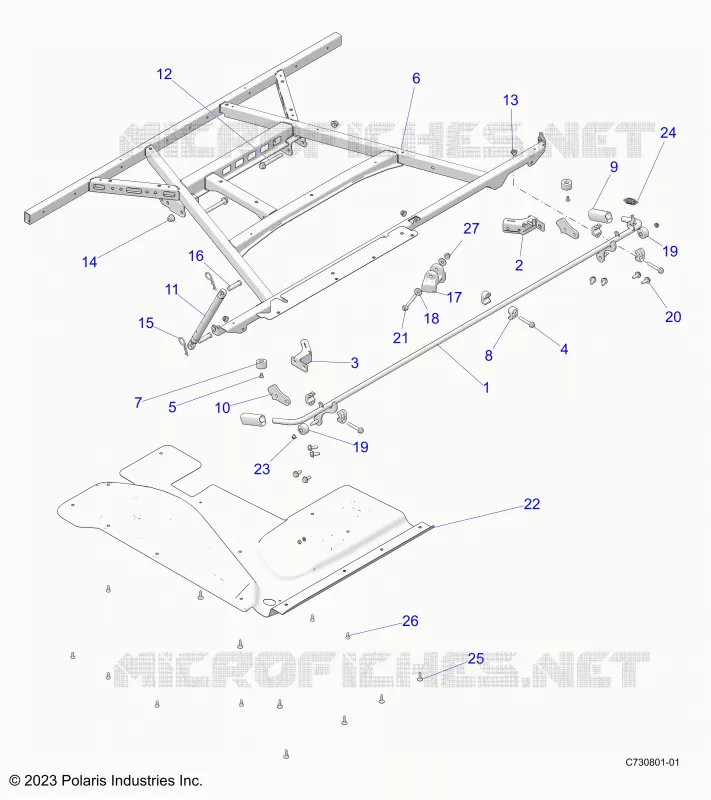

Find the detailed BODYWORK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
