ELECTRICAL, WIRE HARNESS -R24RRED4JA (C7045512)

1

HARNESS-CHASSIS DSL TR

2416551

Not Available

2

FUSE; 15 AMP

4010859

$15,74 Unit Price incl. VAT

3

LABEL-FUSE BOXRGRPSDIESEL

7300606

Not Available

4

CLIP-EDGE 1-3MM THICKNESS

7082428

$9,44 Unit Price incl. VAT

5

ROUTING CLIP

7082073

$52,49 Unit Price incl. VAT

6

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

7

PADUIT STRAP; DOUBLE HOOP

7081033

$8,39 Unit Price incl. VAT

8

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

9

65 MM GROMMET WITH FLANGE; BLACK

5814560

$24,14 Unit Price incl. VAT

10

GROMMET-USB 3 MM 22 MM DIA

5415308

$7,34 Unit Price incl. VAT

11

BRKR-CIRCUIT ETA T1 20A MINI

4080366

$16,79 Unit Price incl. VAT

12

SSR-4PIN

4019393

$204,74 Unit Price incl. VAT

13

HOLDER-FUSE SEALED

4018207

$136,49 Unit Price incl. VAT

14

FUSE-MAXI 40A

4017710

$15,74 Unit Price incl. VAT

15

FUSE BOX RELAY

4016819

$68,24 Unit Price incl. VAT

16

RELAY-SPDT 12V 35A SEALED HFA

4016299

$73,49 Unit Price incl. VAT

17

CONNECTOR-CAP WINCH SWITCH

4014890

$18,89 Unit Price incl. VAT

18

TVS-30VOLT

4013200

$157,49 Unit Price incl. VAT

19

RESISTOR-68 OHM;MINI

4013062

$83,99 Unit Price incl. VAT

20

COVER-FUSEHOLDER

4012260

$19,94 Unit Price incl. VAT

21

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

22

FUSE 5 AMP

4011652

9999999

Not Available

23

MINI BLADE FUSE; 7.5

4011068

9999999

Not Available

24

FUSE PARK 20 AMP (10)

2434017

4012811

$15,74 Unit Price incl. VAT

25

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

26

MAIN FUSE; 30 AMP

2434015

$15,74 Unit Price incl. VAT

27

RESISTOR-EVAP PULLUP-1K0HM

2414716

$18,89 Unit Price incl. VAT

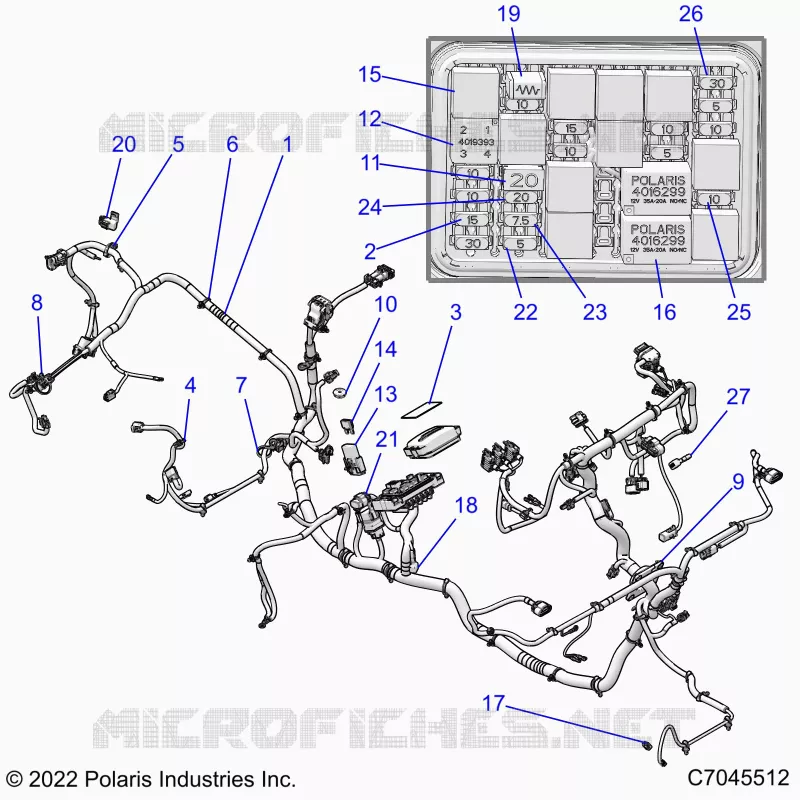

Find the detailed ELECTRICAL, WIRE HARNESS -R24RRED4JA (C7045512) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
