1
Engine displacement
325
2
Year
2002
3
Trim
325 MAGNUM 4X4 HDS - A02CD32FB
4
Parts Catalog
FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
CONTROLS
FRONT RACK BUMPER MOUNTING
1
2
3
12
12
12
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
17
17
17
18
19
20
21
22
23
23
24
25
25
26
27
27
28
29
1
2
3
12
12
12
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
17
17
17
18
19
20
21
22
23
23
24
25
25
26
27
27
28
29
1
2
3
12
12
12
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
17
17
17
18
19
20
21
22
23
23
24
25
25
26
27
27
28
29
1
2
3
12
12
12
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
17
17
17
17
18
19
20
21
22
23
23
24
25
25
26
27
27
28
29
1
2
3
12
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
2
3
12
5
6
7
8
9
10
11
12
13
14
1
2
2
3
12
5
6
7
8
9
10
11
12
13
14
1
SCREW
7517685
$3,14 Unit Price incl. VAT
2
FRONT RACK ASSEMBLY GLOSS BLACK
2670180070
Not Available
3
DECAL-REFLECT.6.75 AMBER
7079926
9999999
Not Available
4
SCREW
7515399
9999999
Not Available
5
KIT FRT.RACK MOUNT
2200775
9999999
Not Available
6
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
7
FRONT BUMPER; GEN IV; GLOSS BLACK
5432155070
Not Available
8
BOLT(10)
7515391
$9,44 Unit Price incl. VAT
9
BOLT
7515390
9999999
Not Available
10
WASHER
7555954
$9,44 Unit Price incl. VAT
11
SUPPORT RACK WELD; FRONT; LEFT; GS BLK
1013744067
Not Available
11
SUPPORT RACK WELD; FRONT; RIGHT; GS BLK
1013746067
Not Available
12
SCREW
7515399
9999999
Not Available
13
ASM-HEADLIGHT 30/30W SIDE MOUN
2431012
9999999
Not Available
13
HEADLIGHT ASSEMBLY LEFT 30/30W
2431011
9999999
Not Available
13
BULB H/L 27W.HOBBS
4030059
9999999
Not Available
14
BOLT
7512329
$7,34 Unit Price incl. VAT
15
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
16
PLUG; FRAME
5810467
9999999
Not Available
17
WELD-BRUSH GUARD;BLK
1013772067
Not Available
17
GUARD-BRUSH BLK
5244731067
Not Available
18
GRILL BRUSHGUARD BLK.
5240591067
Not Available
19
POP RIVET
7621330
$2,09 Unit Price incl. VAT
20
END BUMPER CAP
5433305
$10,49 Unit Price incl. VAT
21
BUMPER-FRONT RSE BLK
5243377067
Not Available
22
WASHER
7556034
$4,19 Unit Price incl. VAT
23
SCREW(10)
7512097
9999999
Not Available
24
NUT
7670094
$10,49 Unit Price incl. VAT
25
SHIELD-RADIATOR SIDE RH
5433924
9999999
Not Available
25
RADIATOR SHIELD; LEFT
5433923
9999999
Not Available
26
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
27
FRAME EXTENSION RIGHT GS BLK
5244730067
Not Available
27
FRAME EXTENSION LEFT GS BLK
5244729067
Not Available
28
SCREW
7517208
$3,66 Unit Price incl. VAT
29
RACK EXTFRLOWBLK
1040526067
Not Available

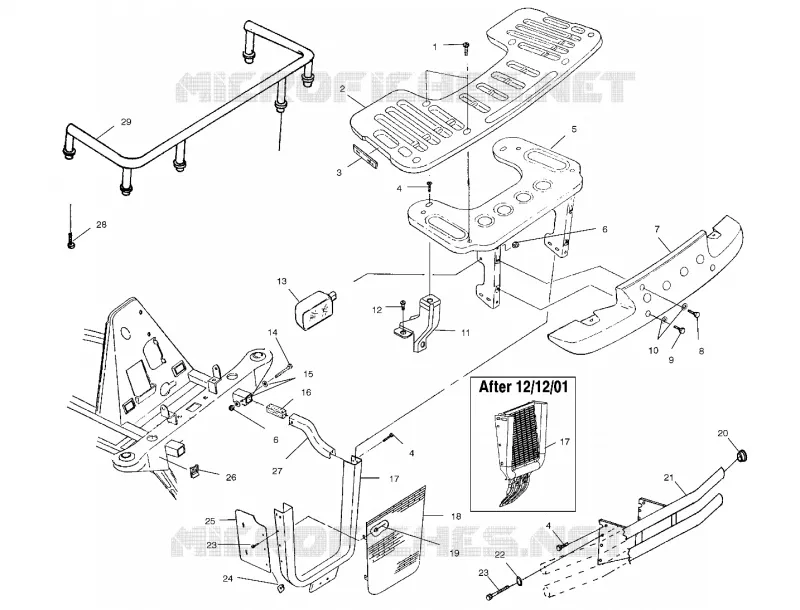

Find the detailed FRONT RACK BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
