1
Engine displacement
325
2
Year
2002
3
Trim
325 MAGNUM 4X4 HDS - A02CD32FB
4
Parts Catalog
WISHBONES
5
Parts Diagram
Parts Catalog
HANDLEBAR
by
ELECTRICAL/TAILLIGHT
WISHBONES
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
24
25
26
27
27
28
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
24
25
26
27
27
28
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
24
25
26
27
27
28
28
29
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
19
19
19
20
21
21
22
22
23
24
24
25
26
27
27
28
28
29
1
2
3
3
3
3
3
3
4
4
5
6
7
8
9
9
10
10
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
1
NUT LOCK
7542403
9999999
Not Available
2
TIE ROD 1/2-20X13.4 ASM.
1820805
1822852
$246,74 Unit Price incl. VAT
3
SEAL BOOT ROD END 1/2 IN
5411291
5412928
$20,99 Unit Price incl. VAT
4
ROD END;RH
7061034
7061139
$115,49 Unit Price incl. VAT
5
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
6
TIE ROD
5020926
$83,99 Unit Price incl. VAT
7
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
8
BOLT-M10X1.25X57 HX WASH HD
7517674
7517909
$10,49 Unit Price incl. VAT
9
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
10
BOOT SEAL ROD END 10MM
5411920
5412929
$20,99 Unit Price incl. VAT
11
WASHER
7556099
$3,14 Unit Price incl. VAT
12
NUT CASTLE(10)
7546904
9999999
Not Available
13
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
14
BALL-JOINT 52 DEG
7080927
7061306
$52,49 Unit Price incl. VAT
15
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
16
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
18
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
19
SHIELD-CV FRONT BLACK LH
5433927070
Not Available
19
CV JOINT SHIELD; LEFT; GLOSS BLACK
5431150070
Not Available
19
SHIELD-CV FRONT BLACK RH
5433928070
Not Available
19
CV JOINT SHIELD; RIGHT; GLOSS BLACK
5431149070
Not Available
20
SCREW
7512084
$2,09 Unit Price incl. VAT
21
BUSHING A ARM LONG
5433066
5436973
$9,44 Unit Price incl. VAT
22
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
23
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
24
A-FRAME KIT RH (1541445)
2201610
9999999
Not Available
24
A-FRAME KIT LH (1541444)
2201609
2202282
$257,24 Unit Price incl. VAT
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
SCREW
7512492
$2,09 Unit Price incl. VAT
28
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
29
SCREW
7515415
9999999
Not Available

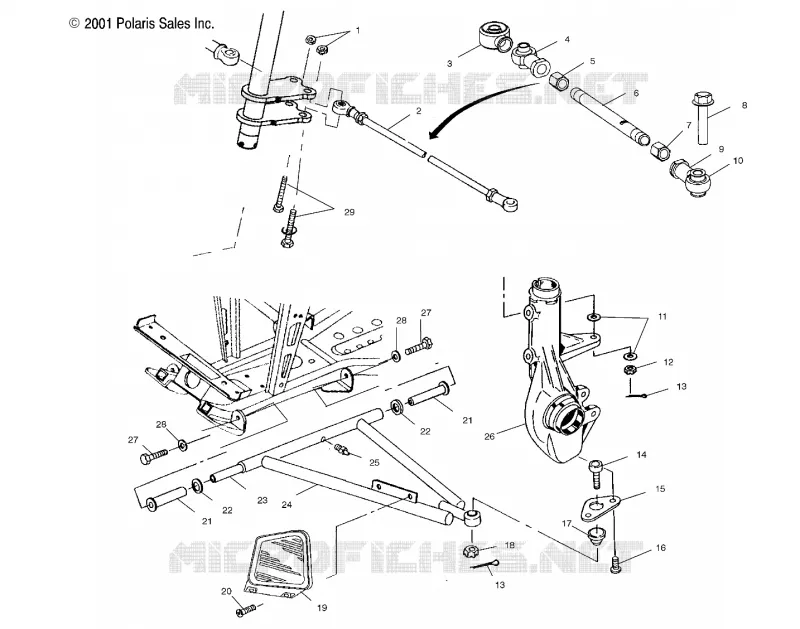

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
