ENGINE MOUNTING SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B001)
5
Parts Diagram
Parts Catalog
STEERING SL 900 B964291 AND INTL. SL 900 I964291 (4935583558A014)
by
DRIVE SYSTEM SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B002)
ENGINE MOUNTING SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B001)
1
SWITCH ASM;TEMP.
4110180
9999999
Not Available
2
GASKET EXH.PIPE
5830051
9999999
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PLATE F.MOUNT
5630585
9999999
Not Available
5
WASHER FLAT
7555956
9999999
Not Available
6
BOLT; S.S.(10)
7512573
9999999
Not Available
7
PLATE R.MOUNT
5630584
9999999
Not Available
8
MT ENG ANTI-ROTATION
3110055
9999999
Not Available
9
SHIM ENG.MT.(10)
5211727
9999999
Not Available
10
WASHER LOCK S.S.
7552610
9999999
Not Available
11
BOLT; S.S.
7515361
9999999
Not Available
12
WASHER; FLAT; S.S.
7555848
9999999
Not Available
13
NUT; NYLOK; S.S.
7542725
9999999
Not Available
14
WASHER LOCK
7552613
9999999
Not Available
15
BOLT
7516809
9999999
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
KIT S.B. (900 TRIPLE)
2200812
Not Available
18
CLIP RETAIN TEMP.SW.
5240876
9999999
Not Available
19
BOLT(1)
7516603
$19,94 Unit Price incl. VAT

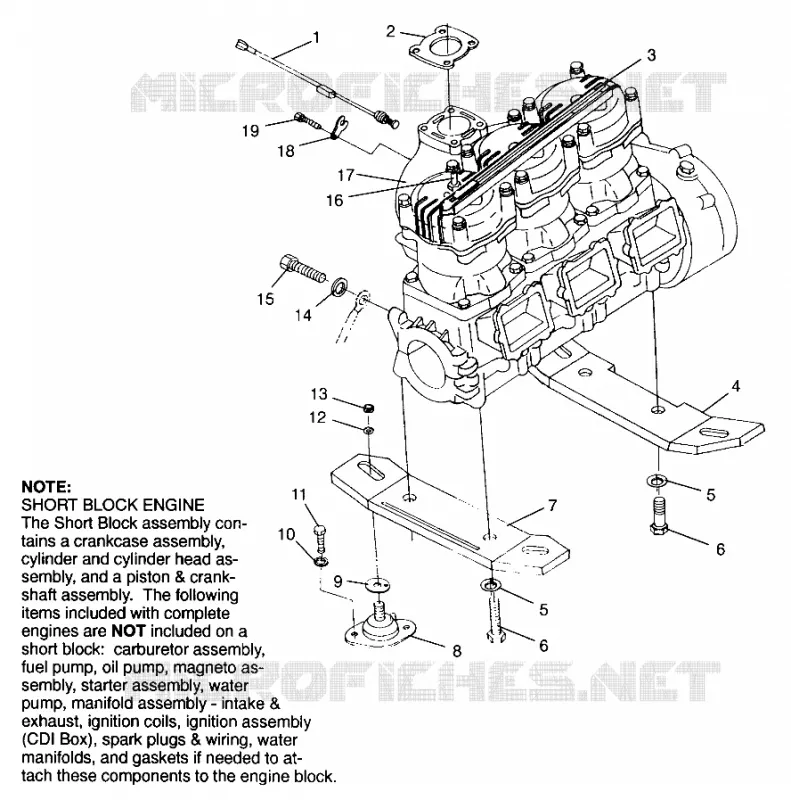

Find the detailed ENGINE MOUNTING SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
