1
Engine displacement
900
2
Year
1996
3
Trim
SL 900 - B964291
4
Parts Catalog
BILGE PUMP SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B014)
5
Parts Diagram
Parts Catalog
TOOL KIT SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B013)
by
CRANKCASE SL 900 B964291 AND INTL. SL 900 I964291 (4935583558C001)
BILGE PUMP SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B014)
1
FITTINGTHRU HULLWATER
5431444
9999999
Not Available
2
GASKET
5811317
9999999
Not Available
3
CLAMP; S.S.(10)
7080470
9999999
Not Available
4
HOSE; 81CM
845005581
Not Available
5
PUMP BILGE Substituted by 2871237
2410035
Not Available
6
WASHER; FLAT(10)
7555869
9999999
Not Available
7
SCREW(10)
7511870
9999999
Not Available
8
BRACKET MTG.
5431889
9999999
Not Available

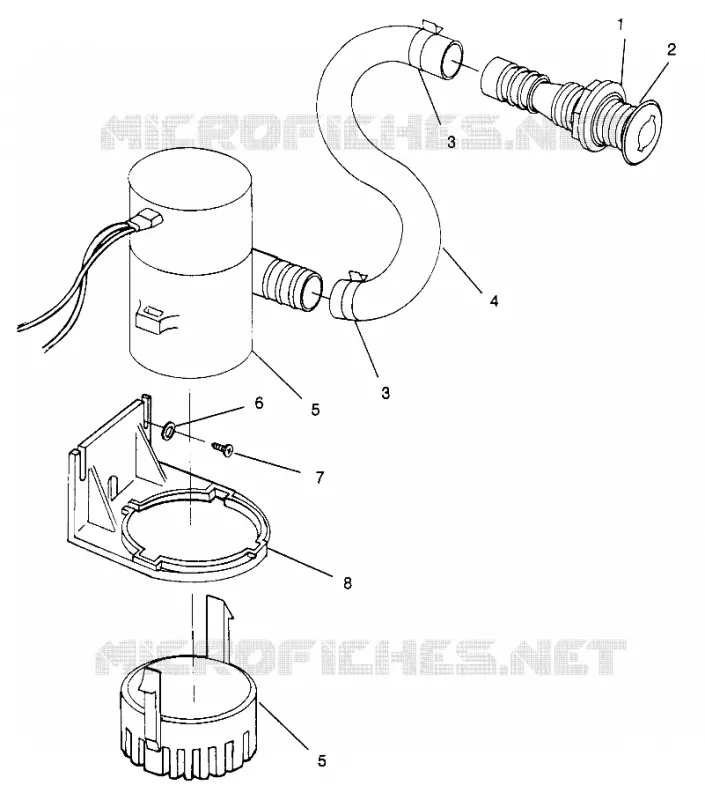

Find the detailed BILGE PUMP SL 900 B964291 AND INTL. SL 900 I964291 (4935583558B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
