1
Engine displacement
400
2
Year
1996
3
Trim
NORWEGIAN 400L 6X6 - N968740
4
Parts Catalog
HEADLIGHT 6X6 400L
5
Parts Diagram
Parts Catalog
OIL TANK 6X6 400L W968740 AND 6X6 400L NORWEGIAN N968740 (4935963596A014)
by
AIR BOX 6X6 400L
HEADLIGHT 6X6 400L
1
HARNESS HEADLIGHT
2460424
Not Available
2
COVER SOCKET H/L.
4032066
9999999
Not Available
3
BULB; H/L
4030028
9999999
Not Available
4
HSG DUAL FEMALE
4040024
9999999
Not Available
5
RETAINER H/L BULB
4032063
9999999
Not Available
6
H/L ASMW/BULBSEAL
4032065
9999999
Not Available
7
SPRING-ADJ
4032002
9999999
Not Available
8
SPRING ADJ.
4032041
9999999
Not Available
9
SCREW
7512017
9999999
Not Available
10
COVER H/L BURN.BRN.
5431202218
Not Available
11
SCREW; ADJ.(10)
4032003
9999999
Not Available
12
DOOR ACCESS BURN.BRN. (Burnish Brown)
5431201218
Not Available
13
FASTENER; 1/4 TURN
7670064
9999999
Not Available
14
SPLIT RETAINER RING
7670065
9999999
Not Available
15
RECEPTACLE CLIP-ON
7670066
9999999
Not Available
16
SCREW ADJUST (ATV)
4032042
9999999
Not Available
17
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
17
CABLE CHOKE
7080371
9999999
Not Available
18
SCREW
7511862
9999999
Not Available
19
IGNITION SWITCH
4110194
9999999
Not Available
20
BRKT; IGN. PANEL
5220965067
Not Available
21
SOCKET STRIP
4032037
9999999
Not Available
22
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
23
PANEL IGNITION
5430995
9999999
Not Available
24
NUT IGN.SWITCH
5432090
9999999
Not Available
25
COVER; KEY
5431964
5465307
$26,24 Unit Price incl. VAT
26
DECAL PANEL
7072528
9999999
Not Available
27
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
28
LENS ASM PILOT LIGHT
2652049
9999999
Not Available

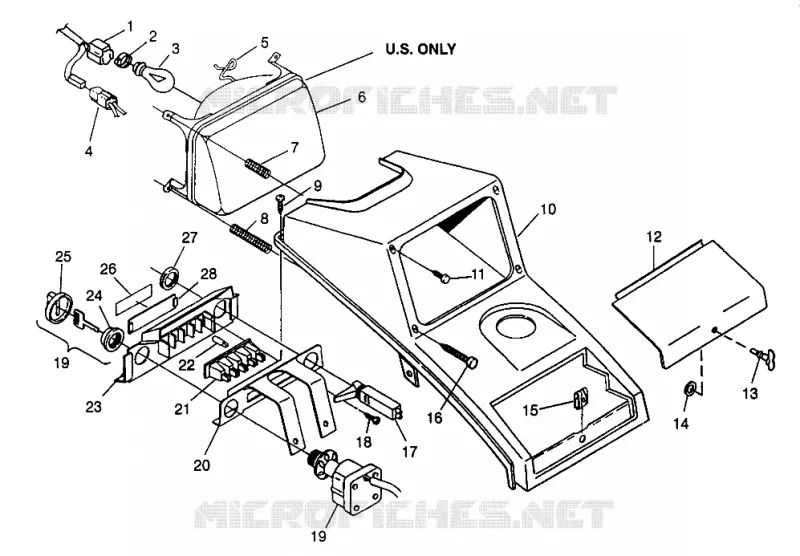

Find the detailed HEADLIGHT 6X6 400L POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
