1
Engine displacement
400
2
Year
1996
3
Trim
NORWEGIAN 400L 6X6 - N968740
4
Parts Catalog
GEARCASE 6X6 400L
5
Parts Diagram
Parts Catalog
GEAR SELECTOR 6X6 400L W968740 AND 6X6 400L NORWEGIAN N968740 (4935963596D005)
by
PISTON CRANKSHAFT 6X6 400L
GEARCASE 6X6 400L
-
GEARCASE ASM;(400)
1341157
9990000
Not Available
-
GEARCASE ASM NORWAY (Incl. -)
1341148
Not Available
1
CASE LH
3233002
9999999
Not Available
2
SCREW
3233026
9999999
Not Available
3
SEAL
3233096
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
9999999
Not Available
5
STUD
3233025
9999999
Not Available
6
BOLT
7512265
9999999
Not Available
7
WASHER
7555827
$7,34 Unit Price incl. VAT
8
DAMPENER CARBURETOR
5432082
9999999
Not Available
9
SEAL
3233097
3233788
$57,74 Unit Price incl. VAT
10
PIPE KNOCK
3233021
9999999
Not Available
11
SHIFTRAIL; LOW
3233022
9999999
Not Available
12
SHIFTRAIL HIGH/REV.
3233023
9999999
Not Available
13
SPACER-SHIFT RAIL
3233154
9999999
Not Available
14
SHAFTLOW SHIFT
3233038
9999999
Not Available
15
O-RING
3233044
9999999
Not Available
16
WASHER
3233040
9999999
Not Available
17
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
18
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
19
WASHER
3233054
9999999
Not Available
20
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
21
SHAFT HI/REV SHIFT
3233039
9999999
Not Available
22
SCREW
3233033
9999999
Not Available
23
PIN
3233031
9999999
Not Available
24
BRACKET
3233030
9999999
Not Available
25
SPRING
3233032
9999999
Not Available
26
BEARING
3233018
$47,24 Unit Price incl. VAT
27
SHAFT INPUT
3233122
Not Available
28
BEARING
3233019
$54,59 Unit Price incl. VAT
29
WASHER
3233007
9999999
Not Available
30
GEAR 33T
3233125
9999999
Not Available
31
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
32
WASHER
3233010
9999999
Not Available
33
DOG ENGAGEMENT LOW
3233126
9999999
Not Available
34
SHAFT REVERSE
3233175
9999999
Not Available
34
SHAFT REVERSE
3233124
Not Available
35
WASHER
3233012
9999999
Not Available
36
SPROCKET 24T
3233127
9999999
Not Available
37
SILENT CHAIN
3233036
9999999
Not Available
38
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
39
RING RETAINING
3233029
9999999
Not Available
40
DOG ENGAGEMENT HI/REV.
3233128
9999999
Not Available
41
GEAR 25T
3233129
9999999
Not Available
42
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
43
WASHER
3233176
$17,84 Unit Price incl. VAT
44
RING RETAINING
3233177
9999999
Not Available
45
BEARING
3233020
$80,84 Unit Price incl. VAT
46
GEAR 65T
3233130
9999999
Not Available
47
SHAFT OUTPUT
3233123
9999999
Not Available
48
OIL DEFLECTOR
3233043
9999999
Not Available
49
CASE RH
3233003
9999999
Not Available
50
WASHER
3233035
9999999
Not Available
51
PLUG OIL DRAIN
3233028
9999999
Not Available
52
VENT
3233037
9999999
Not Available
53
DIPSTICK
3233115
9999999
Not Available

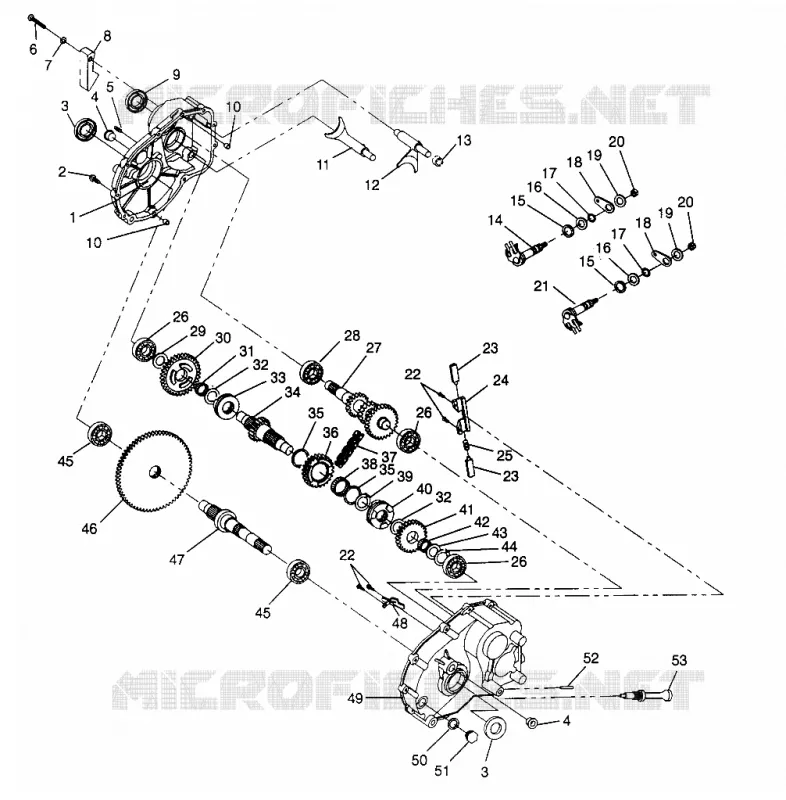

Find the detailed GEARCASE 6X6 400L POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
