1
Engine displacement
500
2
Year
2004
3
Trim
A04JD50AA ATP 500 4X4 - A04JD50AA/AB/CA
4
Parts Catalog
FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
FUEL TANK AND CARBURETOR MOUNTING
FRONT RACK BUMPER MOUNTING
1
2
2
3
4
4
4
4
5
5
6
6
6
6
6
6
7
7
7
7
8
8
9
9
10
11
12
13
14
15
15
16
16
17
17
18
18
1
BOLT
7512232
$2,09 Unit Price incl. VAT
2
SUPPORT RACK WELD; FRONT; LEFT; GS BLK
1013744067
Not Available
2
SUPPORT RACK WELD; FRONT; RIGHT; GS BLK
1013746067
Not Available
3
PLUG; FRAME
5810467
9999999
Not Available
4
SCREW
7515399
9999999
Not Available
5
RACK MOUNT WELD; LEFT; GS BLK
1014099067
Not Available
5
RACK MOUNT WELD; RIGHT; GS BLK
1014101067
Not Available
6
ASM. HEADLIGHT SIDE MOUNT LH
2431014
9999999
Not Available
6
SIDE MOUNT HEADLIGHT ASM RIGHT 35 WATT
2431015
9999999
Not Available
6
BULB H/L 27W.HOBBS
4030059
9999999
Not Available
7
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
WASHER
7555954
$9,44 Unit Price incl. VAT
9
BOLT-5/16-18X2.25 FLG TAP/R-Y
7517977
9999999
Not Available
9
BOLT(10)
7515391
$9,44 Unit Price incl. VAT
10
BOLT
7515390
9999999
Not Available
11
FRONT BUMPER; GEN IV; GLOSS BLACK
5432155070
Not Available
12
WELD-BRUSH GUARD;BLK
1013772067
Not Available
13
NUT
7670094
$10,49 Unit Price incl. VAT
14
SCREW(10)
7512097
9999999
Not Available
15
SHIELD-RADIATOR SIDE RH
5433924
9999999
Not Available
15
RADIATOR SHIELD; LEFT
5433923
9999999
Not Available
16
FRAME EXTENSION RIGHT GS BLK
5244730067
Not Available
16
FRAME EXTENSION LEFT GS BLK
5244729067
Not Available
17
BOLT
7512329
$7,34 Unit Price incl. VAT
18
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT

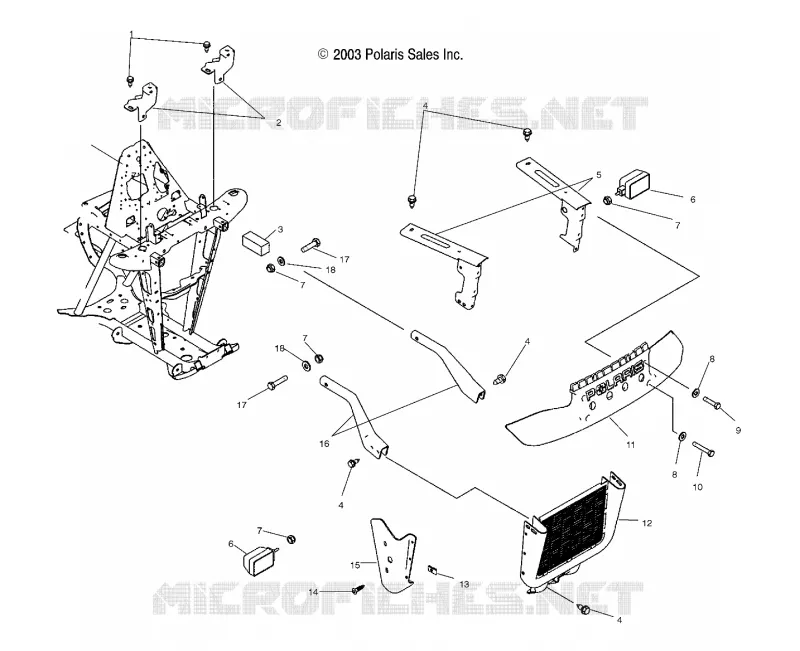

Find the detailed FRONT RACK BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
