TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
CRANKCASE
TRANSMISSION MOUNTING
1
2
2
3
3
4
5
5
5
5
6
7
7
8
9
9
9
9
10
11
11
12
13
13
14
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
15
16
16
17
1
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
2
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
2
SCREW
7515398
9999999
Not Available
3
SCREW
7515417
9999999
Not Available
4
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
5
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
6
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
7
WASHER FLAT
7555976
$7,34 Unit Price incl. VAT
8
MOUNT-TRANSMISSION REAR;PLTD
5247343
9999999
Not Available
9
NUT
7547108
$9,44 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SCREW
7517289
9999999
Not Available
12
ENGINE MOUNT; REAR; MEDIUM GLOSS BLACK
1013134067
Not Available
13
BOLT
7515522
$7,34 Unit Price incl. VAT
14
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
15
MOUNT TRANSMISSION BLK
5242820067
Not Available
16
SCREW
7512024
$9,44 Unit Price incl. VAT
17
CLAMP HOSE NYLON (10)
7080693
$10,49 Unit Price incl. VAT

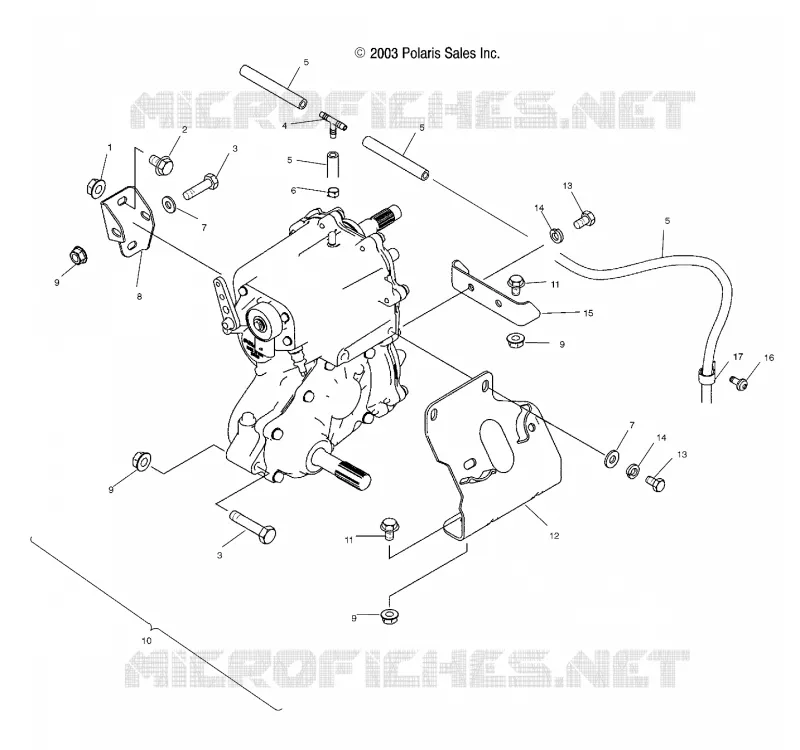

Find the detailed TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
