Parts Catalog
SUSPENSION, REAR TORQUE ARM AND PIVOT ARM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE MOUNTING
by
SUSPENSION EXTENSION
SUSPENSION, REAR TORQUE ARM AND PIVOT ARM
1
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
13
14
15
15
16
1
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
2
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
4
SPACER SPRING
5521277
9999999
Not Available
5
SPRING LH R.SUSP BLK.
7041239067
Not Available
5
SPRING RH R.SUSP BLK.
7041240067
Not Available
6
TORQUE ARM WELD; REAR; BLACK
1541979329
Not Available
7
NUT LOCK
7542302
$7,34 Unit Price incl. VAT
8
NUT SHOULDER
7542326
$36,74 Unit Price incl. VAT
9
BOLT
7515317
$9,44 Unit Price incl. VAT
10
SHAFT-.750X20.19 CB
5139873
$99,74 Unit Price incl. VAT
11
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
12
BOLT-EYE SPRING ADJ.
7080221
$17,84 Unit Price incl. VAT
13
WASHER-.390X.940X.060-FL-HD
7556256
9999999
Not Available
14
PIVOT SHAFT; .750 X 13.235
5132239
$115,49 Unit Price incl. VAT
15
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
16
ARM R.PIVOT BLK.
1540652067
Not Available

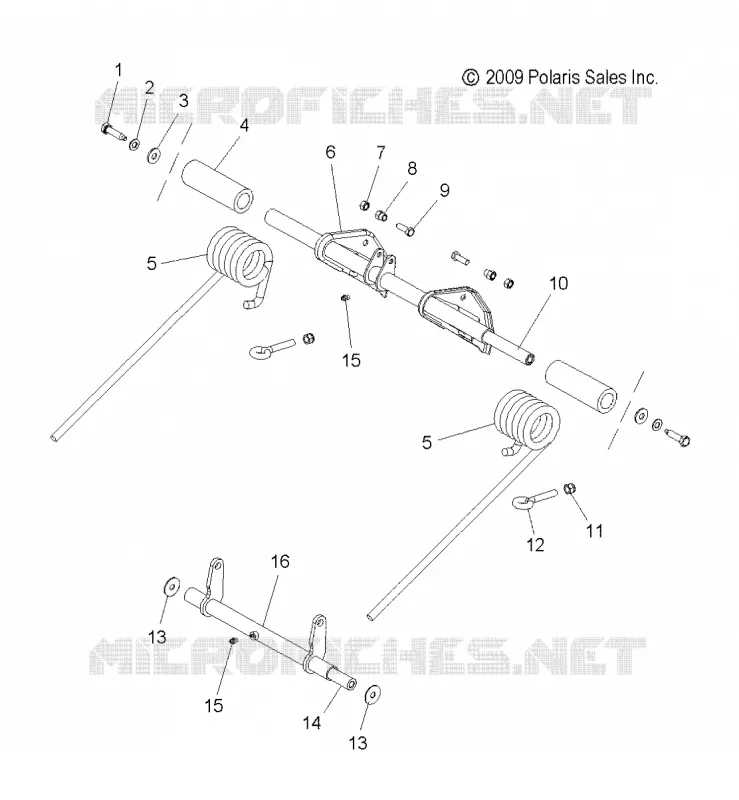

Find the detailed SUSPENSION, REAR TORQUE ARM AND PIVOT ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
