REAR SUSPENSION for POLARIS 550 WIDETRAK LX from 2016

REAR SUSPENSION

1

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

2

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

3

WASHER

7556153

$3,66 Unit Price incl. VAT

4

WASHER-.390X.940X.060-FL-HD

7556256

9999999

Not Available

5

PIVOT SHAFT; .750 X 13.235

5132742

9999999

Not Available

6

PILOT SHAFT SLEEVE

5433977

9999999

Not Available

7

WASHER

7555883

$7,34 Unit Price incl. VAT

8

SPACER-20.32X26.99X157.23

5338892

9999999

Not Available

9

SHAFT-REAR SHOCK

5139901

9999999

Not Available

10

BOLT

7512659

9999999

Not Available

11

WASHER SPLIT LOCK

7553201

$7,34 Unit Price incl. VAT

12

WASHER

7555804

$7,34 Unit Price incl. VAT

13

SPACER

5332786

$13,64 Unit Price incl. VAT

14

BEARING

3514303

$20,99 Unit Price incl. VAT

14

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

14

WHEEL INSERT

5431531

$19,94 Unit Price incl. VAT

14

PLAIN WHEEL WITH INSERT ASSEMBLY; 5.62

1590357

$104,99 Unit Price incl. VAT

15

BOGIE WHEEL BRACKET

5130570

$89,24 Unit Price incl. VAT

16

BOLT

7512404

$7,34 Unit Price incl. VAT

17

SCR-HH-7/16-14X 4.5;GR8

7520270

$17,84 Unit Price incl. VAT

18

WASHER .483X1.37X.083

7556156

$9,44 Unit Price incl. VAT

19

BEARING

3514303

$20,99 Unit Price incl. VAT

19

WHEEL ASSEMBLY WITH SPACER; GLOSS BLACK

1590552070

Not Available

19

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

20

SPACER

5630399

$20,99 Unit Price incl. VAT

21

SPRING ROLLER

5431366

$19,94 Unit Price incl. VAT

22

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

23

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

24

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

25

BEARING

3514303

$20,99 Unit Price incl. VAT

25

ASM-WHL IDLER BSC SCRL6.75;BLK

1590276070

Not Available

25

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

26

BUSHING

7556301

$6,29 Unit Price incl. VAT

27

TUBESPACER CTR OUTSIDE

5330171067

Not Available

28

WASHER-.390X.940X.060-FL-HD

7556256

9999999

Not Available

28

PIVOT SHAFT; .750 X 13.235

5132239

$115,49 Unit Price incl. VAT

29

ARM R.PIVOT BLK.

1540652067

Not Available

30

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

31

SHAFT IDLER

5020726

9999999

Not Available

32

SPRING R.EXT BLK.

7041231067

Not Available

33

TUBE CTR.IDLER BLK.

5333014067

Not Available

34

SHOCKWAVE TRACK; 20 IN X 156 IN X 1 IN

5414453

9999999

Not Available

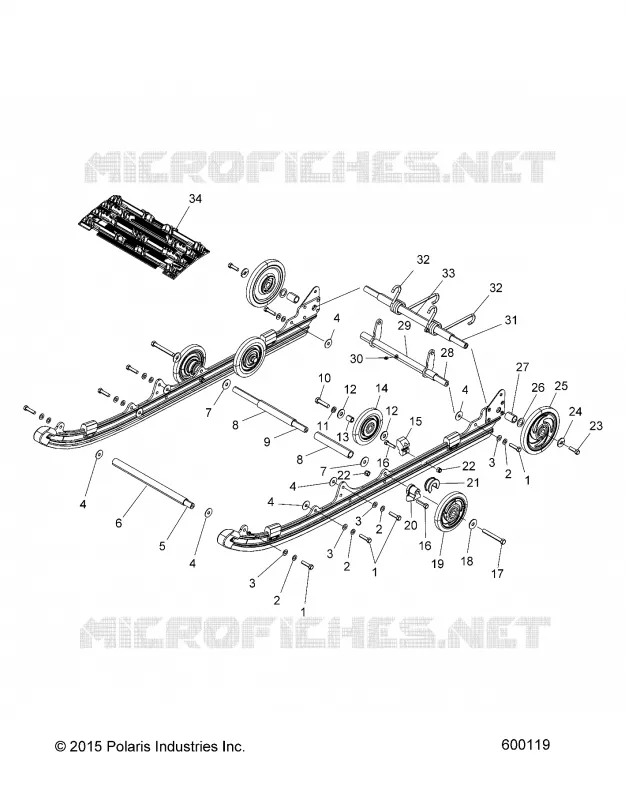

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
