1
Engine displacement
900
2
Year
2015
3
Trim
RZR 900 50/55 INCH ALL OPTIONS
4
Parts Catalog
OIL PUMP AND OIL COOLER
5
Parts Diagram
Parts Catalog
OIL DIPSTICK
by
VALVES AND CAMSHAFTS
OIL PUMP AND OIL COOLER
1
2
3
4
5
6
7
8
8
9
10
11
12
13
1
ASM-PUMP OIL WET SUMP
1204762
3023491
$356,99 Unit Price incl. VAT
2
DOWEL HOLLOW OIL PUMP
7661975
$9,44 Unit Price incl. VAT
3
SPROCKET-OIL PUMPG-90
6230448
9999999
Not Available
4
SCR-SH-M6X1.0X16 8.8 ZPY D204
7519303
$7,34 Unit Price incl. VAT
5
SCREW
7516827
$12,59 Unit Price incl. VAT
6
OIL TO WATER COOLER
1240821
$178,49 Unit Price incl. VAT
7
10 MICRON OIL FILTER
2540086
$19,20 Unit Price incl. VAT
8
FILTER ADAPTOR; STRAIGHT
2521530
$68,24 Unit Price incl. VAT
8
ADAPTER-FILTER STRAIGHT
2520952
2521530
$68,24 Unit Price incl. VAT
9
PICKUP-OIL PUMP;WET SUMP
2521158
2521699
$89,24 Unit Price incl. VAT
10
OIL PUMP DRIVE CHAIN
3222191
3225043
$73,49 Unit Price incl. VAT
11
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
12
O-RING; .612 X .818 X .103
5413837
$9,44 Unit Price incl. VAT
13
OIL PUMP SEAL
3610186
$17,84 Unit Price incl. VAT

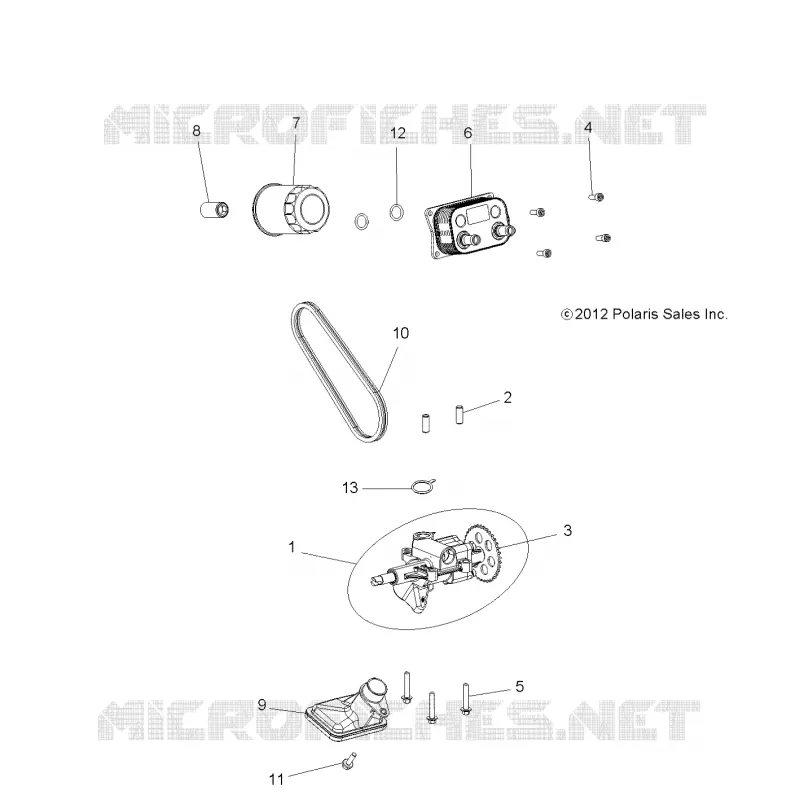

Find the detailed OIL PUMP AND OIL COOLER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
