COOLING, WATERPUMP
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK INTERNALS
by
DASHBOARD GLOVEBOX
COOLING, WATERPUMP
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
1
WATER PUMP ASSEMBLY
1204476
$335,99 Unit Price incl. VAT
2
ASM. WATERPUMP COVER
1204477
1204476
$335,99 Unit Price incl. VAT
3
WATERPUMP ASSEMBLY
1204349
$183,74 Unit Price incl. VAT
4
WATERPUMP COVER GASKET
5413811
$41,99 Unit Price incl. VAT
5
SCR-M6X1.0X25MM HXHD CLR COAT
7519178
$68,24 Unit Price incl. VAT
6
SCREW
7519280
$9,44 Unit Price incl. VAT
7
SCR-M6X1.0X12MM HXHD
7519177
$9,44 Unit Price incl. VAT
8
WASHER-IMPELLER 6.5X19X1.2
7556532
$9,44 Unit Price incl. VAT
9
SCREW
7519297
$7,34 Unit Price incl. VAT
10
WATERPUMP SHAFT SEAL; OIL
3610163
$41,99 Unit Price incl. VAT
11
WATERPUMP SHAFT SEAL
3610164
$115,49 Unit Price incl. VAT
12
WATERPUMP SHAFT
5137069
$52,49 Unit Price incl. VAT
13
O-RING 31.45 X .778
5413863
$14,69 Unit Price incl. VAT
14
WATERPUMP IMPELLER
5438796
$41,99 Unit Price incl. VAT
15
WASHER WATERPUMP RETAINER
7556521
9999999
Not Available

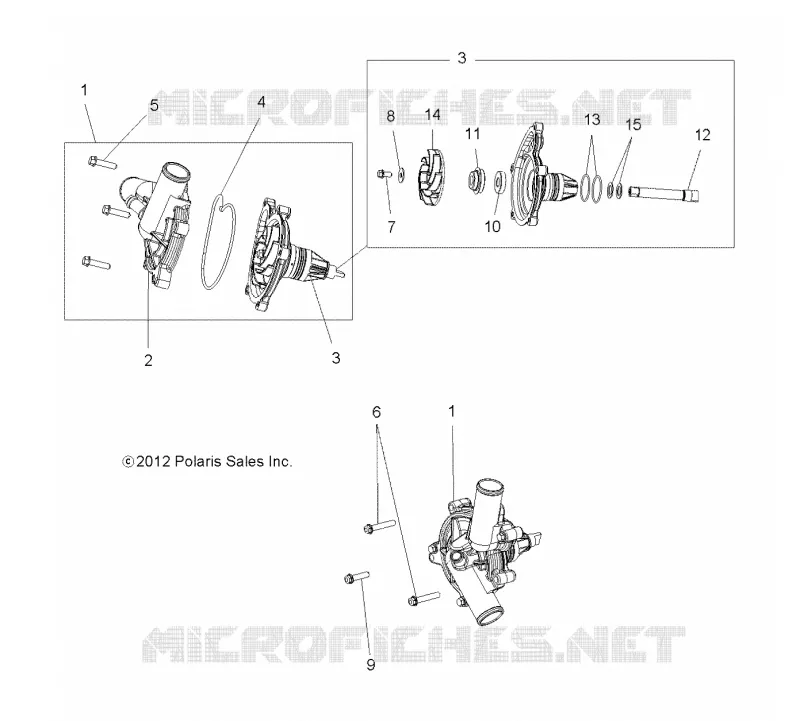

Find the detailed COOLING, WATERPUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
