COOLING SYSTEM for POLARIS RANGER 800 EFI MIDSIZE - R14RH76AA/76AC/7EAZ from 2014

COOLING SYSTEM

1

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

2

HOSE-ENG OUT;RAD IN

5413740

$136,49 Unit Price incl. VAT

3

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

4

HOSE-RAD OUTENG IN

5414493

9999999

Not Available

5

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

6

CONDUIT FLEX 1.250ID

552128718

Not Available

7

SCREW

7517685

$3,14 Unit Price incl. VAT

8

CLIP-COOLANT ROUTING

5438331

9999999

Not Available

9

TRIM; EDGE

836001210

Not Available

10

PRESSURE CAP

1240300

$73,49 Unit Price incl. VAT

11

RADIATOR-FLAT

1240720

1240721

$913,49 Unit Price incl. VAT

12

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

13

FAN ASSEMBLY;

2411732

$593,24 Unit Price incl. VAT

14

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

15

SCR-TFHFL-M6X1.0X25 ZOD

7519342

$3,14 Unit Price incl. VAT

16

VALVE-PLASTIC RAD/COOLER DRAIN

7052410

$52,49 Unit Price incl. VAT

17

BYPASS HOSE; 3/8 IN; FORMED

5413949

9999999

Not Available

18

SCREW M6 X 1.0; L-20MM

7516822

$4,19 Unit Price incl. VAT

19

BYPASS HOSE; FORMED

5414207

$68,24 Unit Price incl. VAT

20

GASKET

5810279

$4,19 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

23

SCREW

7512084

$2,09 Unit Price incl. VAT

24

BRKT-SURGE TANK

5254763

$10,49 Unit Price incl. VAT

25

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

26

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

27

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

28

TEE CONNECTOR; 1 X 1 X 3/8

7052494

$17,84 Unit Price incl. VAT

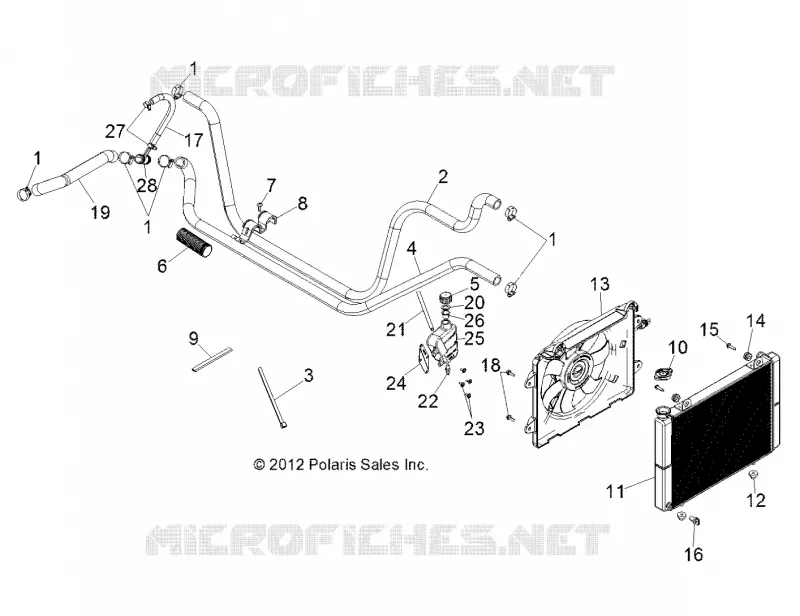

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
