DRIVE TRAIN, MAIN GEARCASE INTERNALS for POLARIS RANGER 800 EFI MIDSIZE - R14RH76AA/76AC/7EAZ from 2014

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE INTERNALS

1

MAIN GEARCASE ASSEMBLY

1333071

9999999

Not Available

2

SCREW

3233749

$10,49 Unit Price incl. VAT

3

SCREW-TORX TRUSS HD

3234086

$10,49 Unit Price incl. VAT

4

SCREW TAPPINGHEXHEAD1/4-20X.75

3234247

$10,49 Unit Price incl. VAT

5

SCREW; HH; 5/16-24X1.5

3234267

$13,64 Unit Price incl. VAT

6

WASHER

3233855

$19,94 Unit Price incl. VAT

7

WASHER FENDER.256 X 1.00 X.047

3234268

$13,64 Unit Price incl. VAT

8

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

9

DOWEL PIN

3233432

$13,64 Unit Price incl. VAT

10

DOWEL PIN; 10 X 45

3234238

$25,19 Unit Price incl. VAT

11

RETAINING RING

3233306

$9,44 Unit Price incl. VAT

12

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

13

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

14

RETAINING RING

3234067

$14,69 Unit Price incl. VAT

15

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

16

RING RETAINING BSCEXTERNAL0.84

3234336

$10,49 Unit Price incl. VAT

17

WASHER

3233176

$17,84 Unit Price incl. VAT

18

SHIM; 1.700 X 1.385

3234271

$47,24 Unit Price incl. VAT

19

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

20

BEARING

3233018

$47,24 Unit Price incl. VAT

21

BEARING; NEEDLE

3233103

$54,59 Unit Price incl. VAT

22

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

23

BEARING; NEEDLE

3233009

$68,24 Unit Price incl. VAT

24

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

25

BALL BEARING; 50 X 80 X 10

3234275

$47,24 Unit Price incl. VAT

26

TORISON SPRING

3233431

$47,24 Unit Price incl. VAT

27

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

28

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

29

TORSION RETURN SPRING

3234276

$16,79 Unit Price incl. VAT

30

PLATE-PARK 12 FACE

3234943

9999999

Not Available

31

GEAR OUTPUT; 91 TOOTH

3234953

$388,49 Unit Price incl. VAT

32

PINION; 13T CENTER DRIVE

3234263

$818,99 Unit Price incl. VAT

33

INPUT SHAFT; 35 TOOTH

3235367

9999999

Not Available

34

REVERSE SHAFT; 26 TOOTH

3234948

$257,24 Unit Price incl. VAT

35

CHAIN TENSIONER SHOE

3233433

$62,99 Unit Price incl. VAT

36

CHAIN TENSIONER CAM

3233434

$26,24 Unit Price incl. VAT

37

SPROCKET; 19 TOOTH; 1.25 IN

3234441

$257,24 Unit Price incl. VAT

38

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

39

RAIL-SHIFT SHAFT

3234079

3235542

$52,49 Unit Price incl. VAT

40

SHIFT FORK

3234077

$335,99 Unit Price incl. VAT

41

FORK; PIVOT SHIFT REAR DIFF

3234285

$120,74 Unit Price incl. VAT

42

GEAR; 44 TOOTH

3235368

$262,49 Unit Price incl. VAT

43

SPROCKET; 6-FACE; 38 TOOTH

3234290

$283,49 Unit Price incl. VAT

44

GEAR; 33T 6-FACE

3234291

$325,49 Unit Price incl. VAT

45

ENGAGEMENT DOG 6 FACE

3234258

$178,49 Unit Price incl. VAT

46

ENGAGEMENT DOG

3234928

$136,49 Unit Price incl. VAT

47

DOG L/P

3234944

9999999

Not Available

48

GEAR; 36 TOOTH DISCONNECT SUBASM; SIDE

3234362

$561,74 Unit Price incl. VAT

49

GEAR SUBASSEMBLY; 36 TOOTH; SIDE

3234363

$435,74 Unit Price incl. VAT

50

CARRIER SUBASSEMBLY; 1.25 IN

3234473

9999999

Not Available

51

CARRIER SUBASSEMBLY; 1.25 IN

3234472

9999999

Not Available

52

GEAR SUBASSEMBLY

3234469

$136,49 Unit Price incl. VAT

53

COVER-CENTER DRIVE BEARING

3234063

$62,99 Unit Price incl. VAT

54

OIL DEFLECTOR

3234915

9999999

Not Available

55

CHAIN PITCHES; 3/8 X 1.25 X 86

3234442

$640,49 Unit Price incl. VAT

56

CHAIN; .25 P X .40 W X 50 L

3234264

$188,99 Unit Price incl. VAT

57

BEARING

3233019

$54,59 Unit Price incl. VAT

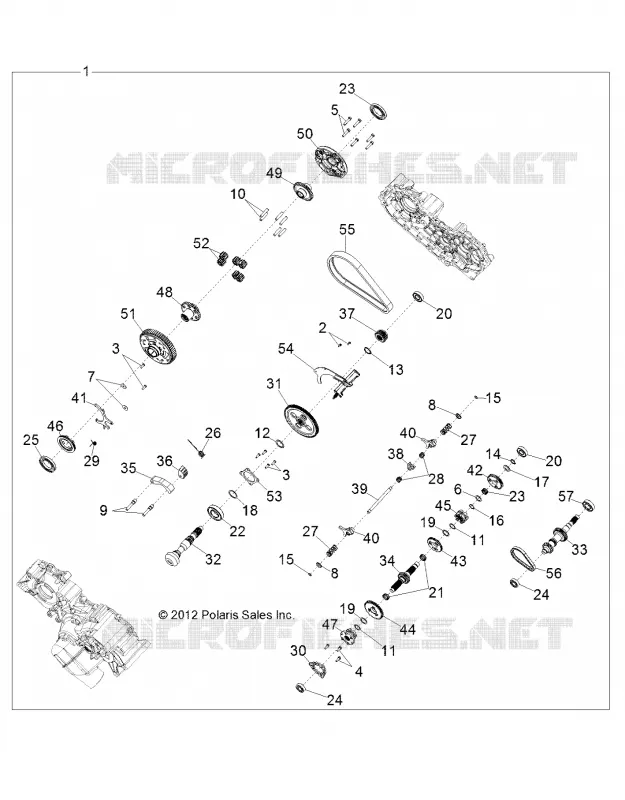

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
