Parts Catalog
FRONT BUMPER WINCH AND MOUNTING
5
Parts Diagram
Parts Catalog
DECALS
by
FUEL TANK
FRONT BUMPER WINCH AND MOUNTING
24
25
26
1
BUMPER WELD; FRONT; ORANGE BURST
1021183647
Not Available
2
FORGING-D-RING ORANGE BURST
5632152647
Not Available
3
SCR-5/16-18X2 5/8 HXSOC HDCAP
7518911
$4,19 Unit Price incl. VAT
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
6
K-WINCH SWITCH
2205636
2207175
$120,74 Unit Price incl. VAT
7
SWITCH-WINCH ATV
2412948
2207175
$120,74 Unit Price incl. VAT
8
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
9
CONTACTOR
4013465
4015095
$148,04 Unit Price incl. VAT
10
WINCH CABLE; YELLOW; 280 MM
4013468280
Not Available
11
WINCH CABLE; BLUE; 280 MM
4013469280
Not Available
12
CABLE-BATT 6GA BK FLAT 85 M6
4014511470
Not Available
13
CABLE-BAT 6GA RD FLT 85 1C 510
4015517510
Not Available
14
CAST FAIRLEAD
5633396
$36,74 Unit Price incl. VAT
15
SCREW
7516734
$5,76 Unit Price incl. VAT
16
HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM
7518450
$3,14 Unit Price incl. VAT
17
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
18
HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM
7519217
$3,14 Unit Price incl. VAT
19
WINCH; 3.5; POLARIS
2205933
$1 034,24 Unit Price incl. VAT
20
K-SVC HANDLE HD WINCH
2205265
9999999
Not Available
21
K-SVC HANDLE WINCH INT CAM
2205497
$16,79 Unit Price incl. VAT
22
HD 25-3500 ROPE
2878888
$141,74 Unit Price incl. VAT
23
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
24
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
25
HD HOOK & LATCH
2411836
$16,79 Unit Price incl. VAT
26
COVER-MOLD SWITCH WINCH
5415687
$13,64 Unit Price incl. VAT

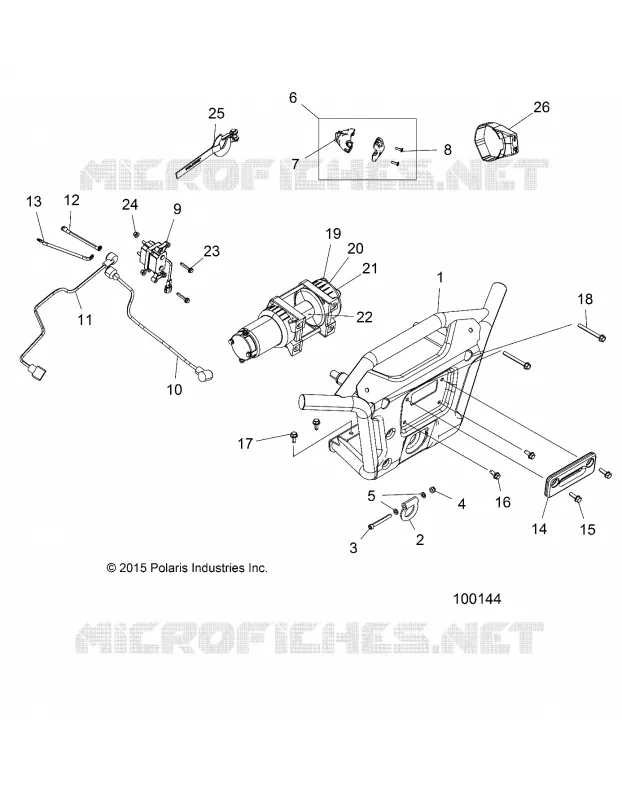

Find the detailed FRONT BUMPER WINCH AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
