Engine displacement
1000
2
Year
2016
3
Trim
SPORTSMAN 1000 HIGH LIFTER
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
ENGINE, COOLING SYSTEM, FANS AND SHROUDS
by
LONG BLOCK
ENGINE, CRANKSHAFT AND PISTON
1
CRANKSHAFT KIT; SPORTSMAN 952
2205143
$1 952,99 Unit Price incl. VAT
2
CON ROD KIT
2204634
$430,49 Unit Price incl. VAT
2
BUSHING-PISTON PIN 20MM
7556569
1205821
$430,49 Unit Price incl. VAT
3
PISTON KIT
2205145
$256,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
7
CONROD BOLT; 9 MM X 1.0 MM
7519263
$31,49 Unit Price incl. VAT
8
BEARING-CON ROD40MMBLUE
3514645027
Not Available
8
BEARING-CON ROD40MM
3514645
9999999
Not Available
8
BEARING-CON ROD40MMRED
3514645015
Not Available
8
BEARING-CON ROD40MMYLW
3514645053
Not Available
8
BEARING-CON ROD40MMWHITE
3514645016
Not Available
9
PISTON RINGS KIT; 90.5 MM
2205146
$128,09 Unit Price incl. VAT

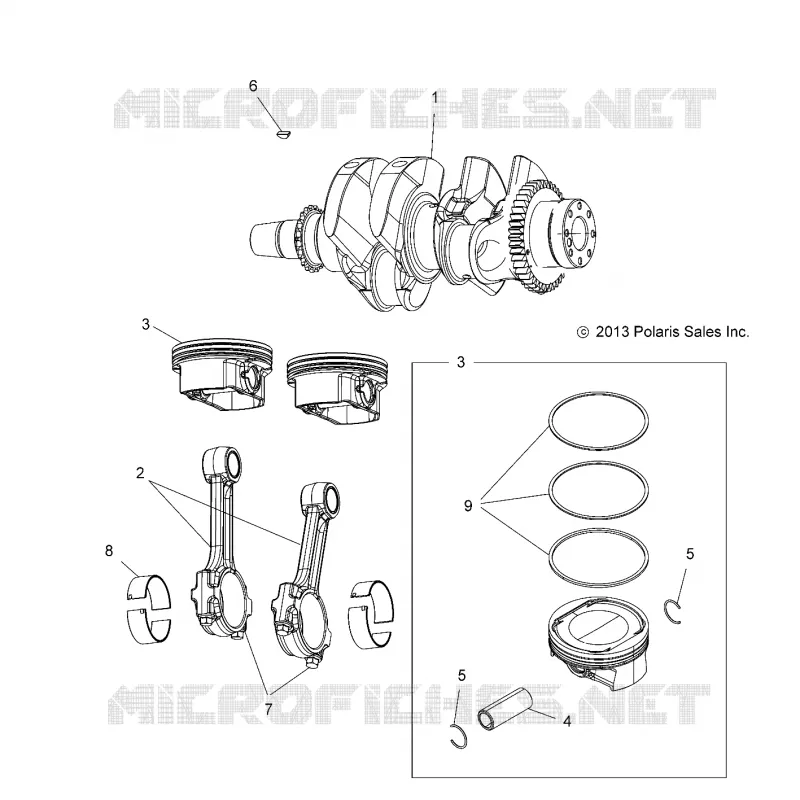

Find the detailed ENGINE, CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
