SUSPENSION, A-ARM AND STRUT MOUNTING for POLARIS SPORTSMAN 450 HO from 2017

STEERING, HANDLEBAR CONTROLS

WHEELS, FRONT TIRE AND BRAKE DISC

SUSPENSION, A-ARM AND STRUT MOUNTING

1

FLARED A-FRAME WELD; RIGHT; GS BLK

1542162067

Not Available

1

FLARED A-FRAME WELD; LEFT; GS BLK

1542161067

Not Available

2

C BORE A-ARM SHAFT

5139929

$52,49 Unit Price incl. VAT

3

BALL JOINT BOOT; GREASLESS

5412658

$9,44 Unit Price incl. VAT

4

A-ARM BUSHING; LONG; 102.36 MM

5436973

$9,44 Unit Price incl. VAT

5

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

6

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

7

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

8

CV SHIELD FRONT RIGHT SIDE GLOSS BLACK

5435029070

Not Available

8

CV SHIELD; FRONT; LEFT SIDE; GLOSS BLACK

5435028070

Not Available

9

SCREW

7512084

$2,09 Unit Price incl. VAT

10

SCR-3/8-24X1 3/4HXGR5P30Y

7520340

7521149

$6,29 Unit Price incl. VAT

11

WASHER

7556153

$3,66 Unit Price incl. VAT

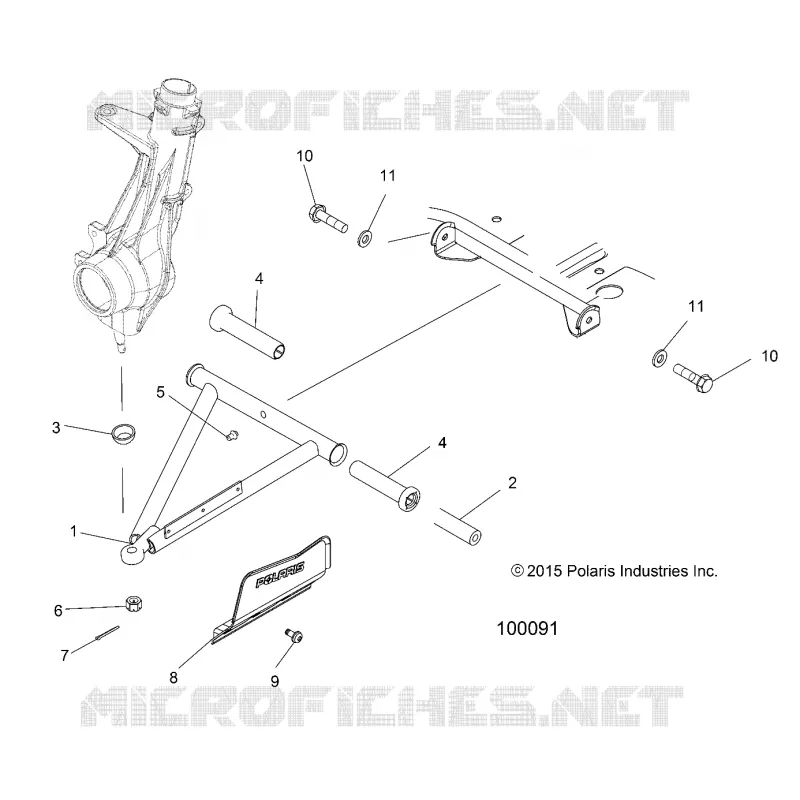

Find the detailed SUSPENSION, A-ARM AND STRUT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
