ENGINE, THROTTLE BODY AND FUEL RAIL

1

SPRING PIN

7661913

$7,34 Unit Price incl. VAT

1

THROTTLE BODY ASSEMBLY; ATV

1205009

$682,49 Unit Price incl. VAT

2

CV REPLACEMENT

1380047

Not Available

2

INJECTION FUEL; SE

2521621

$141,74 Unit Price incl. VAT

3

FUEL RAIL; 1 CYLINDER

2521675

$104,99 Unit Price incl. VAT

3

SLEEVE SEAL

5222299

9999999

Not Available

4

THROTTLE BODY ADAPTER

5415746

$104,99 Unit Price incl. VAT

4

SHAFTDRIVEW/SLEEVE

1380045

9999999

Not Available

5

WASHER

5211101

9999999

Not Available

5

CLAMP HOSE

7081623

$5,76 Unit Price incl. VAT

6

SOCKET HEAD SCREW 8 MM X 1.25 MM X 25 MM

7519859

$10,49 Unit Price incl. VAT

6

SHAFT;DRIVE;W/40K+CROSS

1380046

9999999

Not Available

7

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

7

CLAMP; SMALL

3260105

3260123

$11,54 Unit Price incl. VAT

8

COVER-THROTTLE BODY

5259059

$12,59 Unit Price incl. VAT

8

BOOT

3260114

9999999

Not Available

9

CLAMP LARGE

3260115

9999999

Not Available

9

TB HOUSING GASKET

5415104

$3,14 Unit Price incl. VAT

10

SCR-M4X0.7X8MM TX

7519292

$1,56 Unit Price incl. VAT

10

WAVE WASHER

7571605

$11,54 Unit Price incl. VAT

11

CHECK VALVE

7052038

$20,99 Unit Price incl. VAT

12

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

13

FUEL LINE; 1/4 ID

84500031525

Not Available

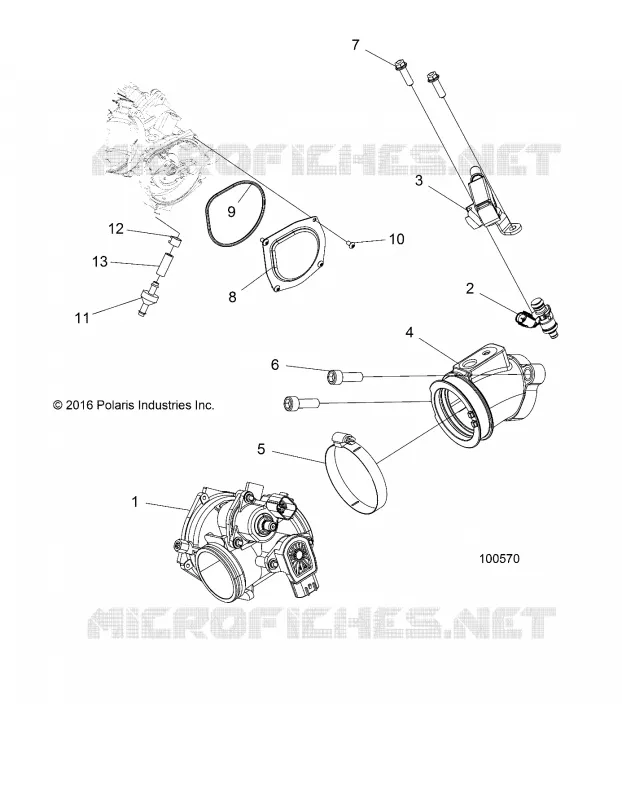

Find the detailed ENGINE, THROTTLE BODY AND FUEL RAIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
